LMZ14202HTZX/NOPB Texas Instruments
Same model may have multiple batches, images only for reference.

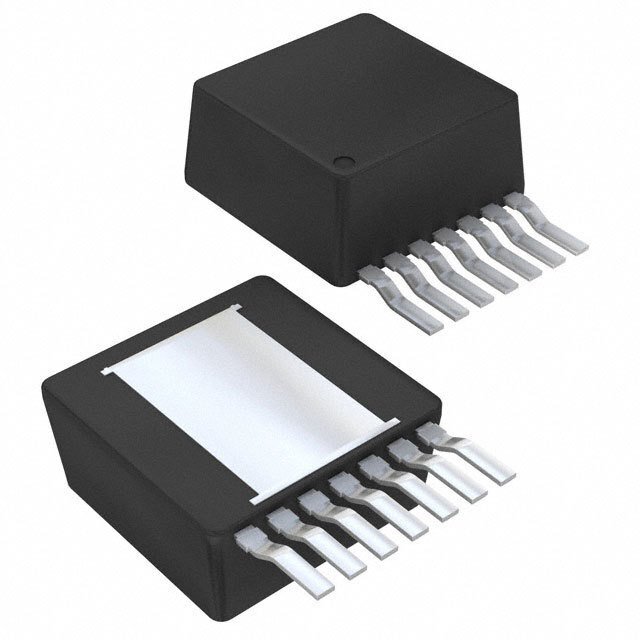

LMZ14202HTZX/NOPB

Part No LMZ14202HTZX/NOPB
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description Module DC-DC 1-OUT 5V 2A 7-Pin TO-PMOD EP T/R / IC BUCK SYNC ADJ 2A TO-PMOD-7
Datasheet
LMZ14202HTZX/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type Non-Isolated PoL Module
Number of Outputs 1
Minimum Input Voltage 6V
Maximum Input Voltage 42V
Nominal Output Voltage 1 5 to 30 V
Current - Output (Max) 2A
Applications ITE (Commercial)
Features UVLO
Temperature Range - Operating -55°C to 125°C
Efficiency 97%
Mounting SMD (SMT)
Dimension 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm)
Win Source Part Number 206480-LMZ14202HTZX
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Signal Processing, Power Management, Industrial
Family Name LMZ14202H
Introduction Date January 21, 2011
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian LMZ14202HTZX/NOPB CAD Model

Description

The is a high-performance, easy-to-use power module from Texas Instruments. Part of the Simple Switcher® series, it is capable of delivering up to 3A of output current from an input voltage range of 6V to 42V.

  • Output Voltage: Adjustable from 0.8V to 6V
  • Efficiency: Up to 95%
  • Protection Features: Over-temperature, under-voltage lockout, and over-current protection
  • Compliance: RoHS compliant, lead, bromine, and antimony-free
  • Package: HTSSOP package
