Product Overview: LMZ31530RLGT from Texas Instruments

The LMZ31530RLGT is a high-performance, easy-to-use power module from Texas Instruments (TI) that offers an outstanding power solution for a wide range of applications. This power module is part of TI's SIMPLE SWITCHER® series and is designed to simplify the power supply design process, enabling engineers to achieve high efficiency and power density with minimal effort.

With a 3A to 15A load current range and an input voltage range of 2.95V to 14.5V, the LMZ31530RLGT is an extremely versatile module that can cater to various power requirements. It is particularly suitable for space-constrained applications due to its compact size and integrated inductor.

The module incorporates advanced features such as an adjustable switching frequency (from 200 kHz to 1 MHz), which allows for flexibility in optimizing efficiency and component size. Additionally, it comes with synchronization capability to reduce electromagnetic interference (EMI) by aligning the switching frequencies of multiple ICs. This feature is crucial for applications sensitive to noise, such as communication or precision measurement devices.

For protection, the LMZ31530RLGT is equipped with a range of safety features, including over-temperature, over-current, and under-voltage lockout protections. These safeguards ensure the longevity and reliability of both the power module and the end application it is used in. The module also has an enable pin for power sequencing and a power good output for easy power management and troubleshooting.

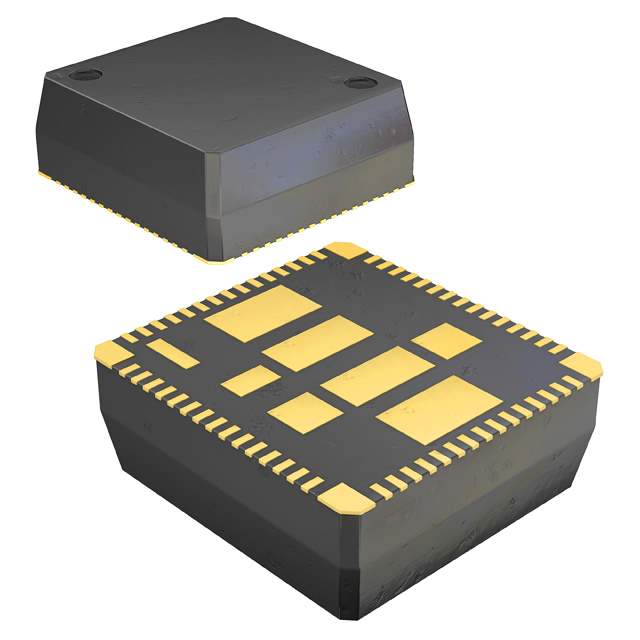

The LMZ31530RLGT is available in a low-profile QFN package, which is highly thermal efficient, allowing for better heat dissipation and ensuring stable performance even at high power levels. This makes it an ideal choice for applications such as FPGA, DSP, and ASIC power supplies, as well as compact and high-performance industrial and telecommunications equipment.

In summary, the LMZ31530RLGT from Texas Instruments represents a state-of-the-art power solution that combines ease of use with high efficiency, advanced features, and robust protection mechanisms. Its adaptability and compact design make it a top choice for engineers looking to streamline their power supply designs without compromising on performance or reliability.
