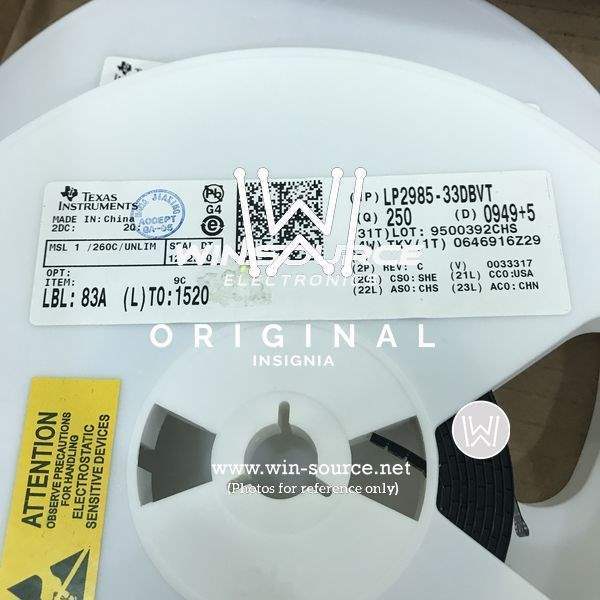

LP2985-33DBVTG4

Part No LP2985-33DBVTG4
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 3.3V 0.15A SOT23-5
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 16V
Nominal Output Voltage (Min/Fixed) 3.3V
Dropout Voltage-Max 0.58V @ 150mA
Output Current 150mA
Operating Supply Current 95μA to 2.5mA
PSRR 45dB (1kHz)
Control Features Enable
Protection Features Over Current, Over Temperature, Short Circuit
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 3.3V
Voltage - Dropout (Typical) 0.28V @ 150mA
Mounting SMD (SMT)
Case / Package SOT-23-5
Win Source Part Number 143878-LP2985-33DBVTG4
Ultra Librarian 3D Model Ultra Librarian LP2985-33DBVTG4 CAD Model

Description

The LP2985-33DBVTG4 is a high-performance, low-dropout regulator from Texas Instruments, a renowned global semiconductor company that designs and manufactures analog ICs and embedded processors. This product is a part of the LP2985 family of micro-power, low noise, low dropout linear regulators, designed to provide optimal performance in a variety of applications.

  • Fixed Output Voltage: 3.3V
  • Maximum Output Current: 150mA
  • Output Voltage Accuracy: Within a tight 1% tolerance
  • Low Dropout Voltage: Ensures efficient operation even when the input voltage is very close to the output voltage
  • Low Ground Pin Current: Enhances battery life in portable devices
  • Excellent Line and Load Transient Response: Ensures stable operation under rapidly changing load conditions
  • Low Noise Operation: Important in sensitive analog and RF applications
  • Shutdown Feature: Reduces supply current to virtually zero when disabled
  • Package: Compact SOT-23
  • Protection Features: Thermal overload protection and overcurrent protection

In conclusion, the LP2985-33DBVTG4 from Texas Instruments is a high-performance, low-dropout regulator that offers a combination of excellent performance, robust protection features, and compact size. Whether you're designing a battery-powered portable device or a high-precision digital system, the LP2985-33DBVTG4 is an excellent choice for your power regulation needs.
