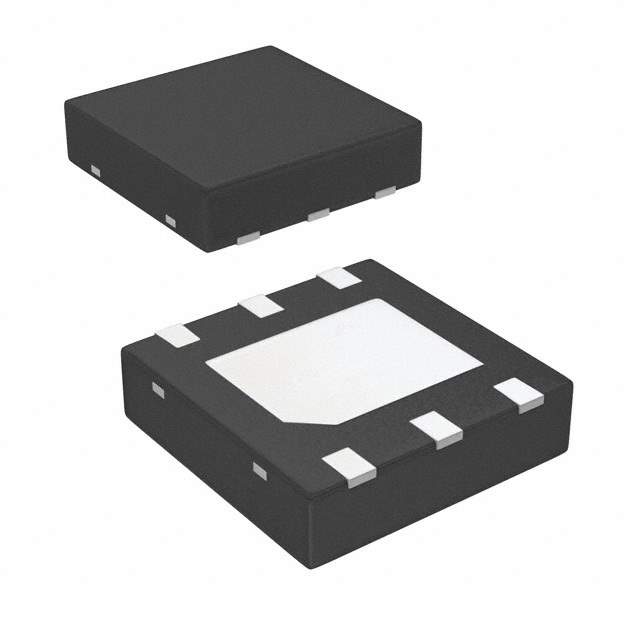

Overview of Texas Instruments LP38690SDX-ADJ

The LP38690SDX-ADJ from Texas Instruments is a high-performance, low-dropout (LDO) voltage regulator that offers the benefits of low dropout voltage, low noise, and high power supply rejection ratio (PSRR). This regulator is designed to provide up to 1A of output current with a dropout voltage of typically 500mV at full load, making it ideal for battery-powered devices where maximizing battery life is a key concern.

Key Features

• Adjustable Output Voltage: The LP38690SDX-ADJ provides an adjustable output voltage from 1.25V to 5.5V, allowing for flexibility in various applications.
• High Output Current: Capable of delivering up to 1A of continuous output current, this LDO is suitable for powering a wide range of devices.
• Low Dropout Voltage: The typical dropout voltage of 500mV ensures efficient operation, even when the input voltage is close to the output voltage.
• Excellent Load and Line Regulation: The device maintains a stable output voltage despite variations in load and input voltage, ensuring reliable performance.
• Low Noise: With its low-noise design, the LP38690SDX-ADJ is perfect for sensitive RF or audio applications that require a quiet power supply.
• High PSRR: A high PSRR minimizes the effect of supply voltage variations on the output voltage, which is crucial for maintaining a stable voltage in fluctuating power environments.
• Thermal Protection: The built-in thermal shutdown feature protects the device from overheating, enhancing system safety and reliability.
• Overcurrent Protection: Overcurrent protection safeguards the regulator and the load from damage due to excessive current draw.

Applications

The versatility of the LP38690SDX-ADJ makes it suitable for a broad range of applications, including:

• Portable and battery-powered devices
• Wireless communication systems
• Microcontroller power supplies
• Linear power supplies
• Post-regulation for switching supplies
• Audio and RF applications

With its combination of features, the LP38690SDX-ADJ is an excellent choice for designers looking for a reliable, adjustable LDO voltage regulator that can deliver high performance in a compact package.
