The LP8728QSQX-B/NOPB is a highly integrated power management integrated circuit (PMIC) from Texas Instruments, designed to meet the power requirements of modern, battery-powered devices. This advanced PMIC features multiple programmable voltage rails and is ideal for applications in mobile phones, tablets, and other portable electronics that demand compact, efficient, and versatile power solutions.

Key Features

• Multiple Output Power Supplies: The LP8728QSQX-B/NOPB includes six high-efficiency step-down DC-DC converters and four low-dropout (LDO) regulators. This combination allows for precise power delivery to various subsystems within the device.
• Programmable Voltage Rails: Each output rail is programmable via an I2C-compatible interface, enabling dynamic voltage scaling to optimize power consumption based on the operational needs of the system.
• High Integration: By integrating several power outputs into a single package, this PMIC reduces the overall component count, saving space and simplifying the design of the power supply architecture.
• Advanced Power Sequencing: The device includes programmable power sequencing, ensuring that each power rail is activated in the correct order to safely power up and power down the system.
• Protection Features: The LP8728QSQX-B/NOPB is equipped with a range of protection features including over-current, over-voltage, under-voltage, and thermal shutdown to ensure reliable operation under various conditions.

Technical Specifications

• Input Voltage Range: The PMIC operates over a wide input voltage range, accommodating various battery chemistries and configurations.
• High Efficiency: The step-down converters utilize an advanced control scheme to provide high efficiency across a wide load range.

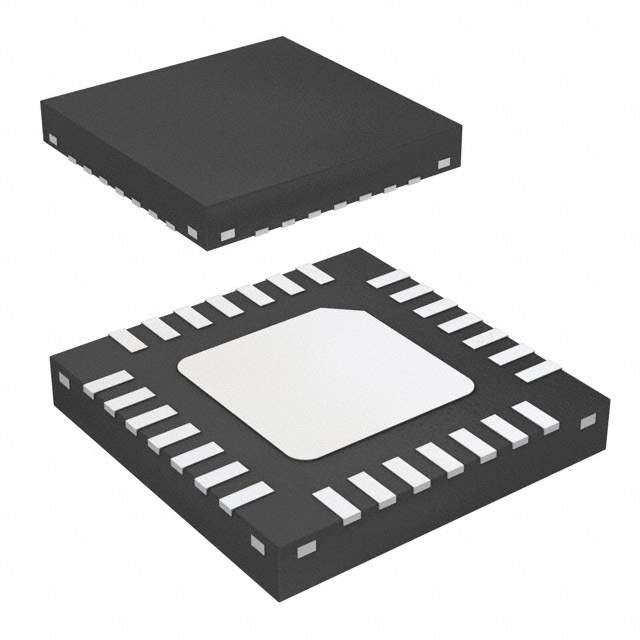

• Package: The device is available in a compact package, designed for space-constrained applications.
• Environmental Compliance: The LP8728QSQX-B/NOPB is compliant with RoHS regulations, reflecting Texas Instruments' commitment to environmental responsibility.

Applications

The versatile nature of the LP8728QSQX-B/NOPB makes it suitable for a wide range of applications, including but not limited to:

• Smartphones and Tablets
• Portable Media Players
• Wearable Technology
• Wireless Networking Devices
• Other Battery-Powered Consumer Electronics

With its comprehensive feature set and flexible power management capabilities, the LP8728QSQX-B/NOPB from Texas Instruments stands out as a sophisticated solution for modern electronic devices requiring efficient and reliable power management.
