Overview of Texas Instruments OPA452TA-1

The OPA452TA-1 from Texas Instruments is a robust, high-voltage, high-current operational amplifier designed to drive a wide range of loads while providing outstanding performance. This op-amp is well-suited for industrial applications, including test equipment, piezoelectric transducers, and programmable power supplies, among others.

Key Features

• High Voltage Operation: The OPA452TA-1 operates at supply voltages up to ±30V, or a whopping 60V swing, making it ideal for applications that require a wide dynamic range.
• High Output Current: Capable of delivering a continuous output current of up to 50mA, with the ability to handle peak currents as high as 200mA, this op-amp can drive heavier loads without faltering.
• Wide Temperature Range: This device can operate over an extended industrial temperature range from -40°C to +85°C, ensuring reliability in harsh environments.
• Thermal Protection: The OPA452TA-1 comes with built-in thermal shutdown protection, safeguarding the device from overheating and potential damage.
• Robust Output Stage: The output stage offers protection against short circuits, adding an extra layer of security for connected components.

Performance Specifications

• Low Quiescent Current: Despite its high-voltage capabilities, the OPA452TA-1 maintains a low quiescent current, helping to conserve power in sensitive applications.
• Wide Bandwidth: It features a bandwidth of 1.8MHz, which allows for signal amplification with minimal distortion across a broad range of frequencies.
• High Slew Rate: With a slew rate of 10 V/µs, the OPA452TA-1 can handle rapid changes in input signals, making it suitable for fast-operating conditions.

Packaging and Quality

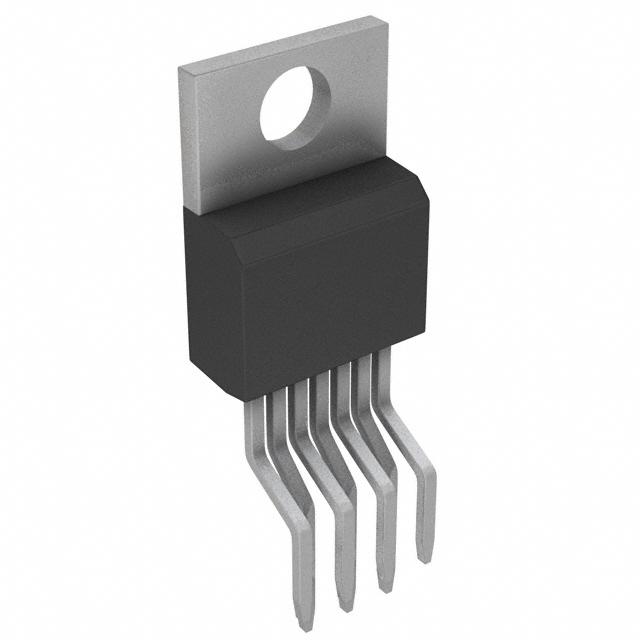

The OPA452TA-1 is packaged in a TO-220 form factor, which is known for its ease of heat sinking, thus facilitating thermal management. Texas Instruments' commitment to quality ensures that each unit is rigorously tested and meets the highest standards of performance and reliability.

Applications

Thanks to its robustness and versatility, the OPA452TA-1 is an excellent choice for a variety of demanding applications, including motor control, audio amplification, power supply control circuits, and other scenarios that require a high-voltage, high-current operational amplifier.
