Product Overview: PCI2060IGHK by Texas Instruments

The PCI2060IGHK is a high-performance, PCI-to-PCI bridge chip from the renowned semiconductor manufacturer Texas Instruments (TI). This advanced integrated circuit is designed to manage the seamless connection between two PCI buses, providing a robust and efficient solution for expanding the PCI capabilities of a system.

The PCI2060IGHK offers a range of features that make it an ideal choice for a variety of applications, including industrial control systems, data communication equipment, and embedded computing platforms. With its support for 32-bit data transfers at 33 or 66 MHz, this PCI bridge chip can handle high-bandwidth requirements with ease, ensuring smooth and reliable data communication between connected devices.

Key Features:

• PCI Interface: The device supports 32-bit PCI operations and is compatible with both 3.3V and 5V signaling environments, providing versatility for different system designs.
• Dual PCI Bus: It facilitates communication between two independent PCI buses, effectively doubling the available PCI slots without compromising performance.
• High-Speed Data Transfer: Capable of operating at either 33MHz or 66MHz, it allows for high-speed data transmission, which is essential for data-intensive applications.
• Advanced Configuration: The PCI2060IGHK features programmable configuration registers that allow system integrators to tailor the device to specific application needs.
• Low Power Consumption: Designed with power efficiency in mind, this bridge chip minimizes power usage, which is critical for applications where energy efficiency is a concern.

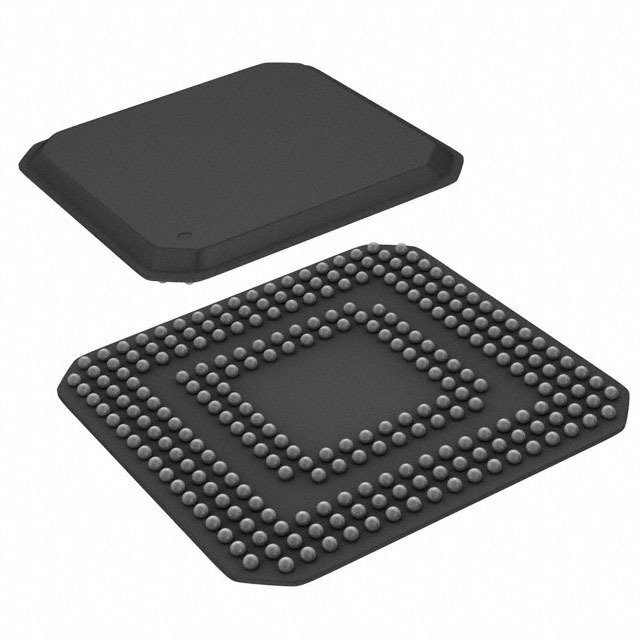

• Robust Thermal Performance: The chip is available in a 209-ball MicroStar BGA™ package, which is known for its excellent thermal performance and small footprint.

The PCI2060IGHK is built to maintain high interoperability and is compliant with PCI Local Bus Specification Revision 2.2. Its seamless integration capabilities make it a go-to solution for designers looking to enhance their systems with additional PCI resources without the need for significant redesign.

Texas Instruments' commitment to quality ensures that the PCI2060IGHK is a reliable and durable component that can withstand the rigors of demanding operational environments. Whether for upgrading existing systems or designing new ones, the PCI2060IGHK provides a straightforward and effective way to expand PCI infrastructure.
