Same model may have multiple batches, images only for reference.

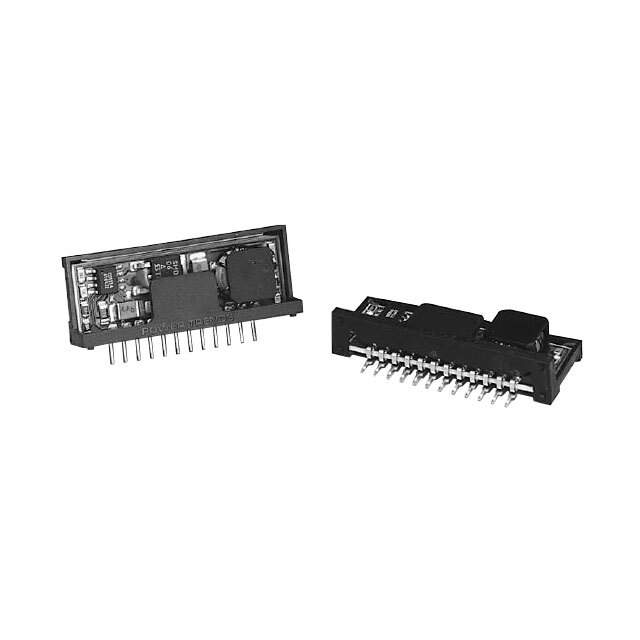

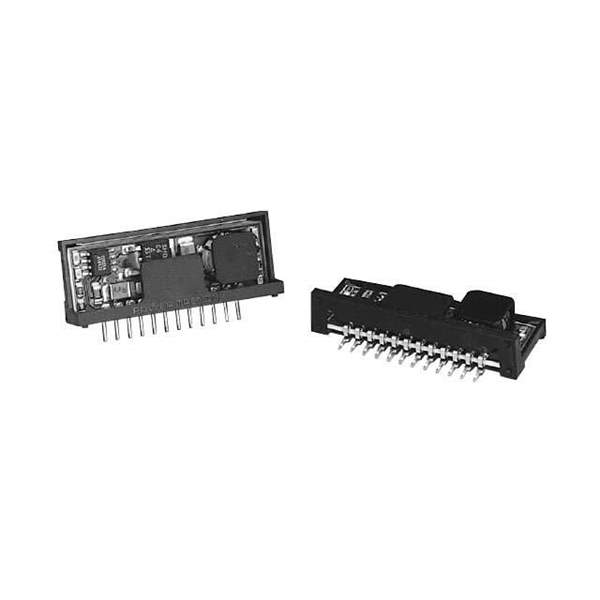

PT6313A Real Image
Same model may have multiple batches, images only for reference.

PT6313A

Part No PT6313A
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description REGULATOR -8.00V HORZ 12-SIP
Datasheet
PT6313A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series PT6310
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 12V
Voltage - Input (Max) 38V
Voltage - Output 1 8V
Current - Output (Max) 2A
Applications ITE (Commercial)
Mounting Style Through Hole, Right Angle
Package 12-SIP Module
Operating Temperature Range -40°C ~ 85°C
Efficiency 87%
Power (Watts) - Max 16W
Win Source Part Number 118025-PT6313A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PT6313A CAD Model

Description

The PT6313A is a high-performance, low-power product from Texas Instruments, a renowned global semiconductor company that designs and manufactures analog ICs and embedded processors.

  • Step-Down Converter: 1.5A
  • Input Supply Range: 4.5V to 18V
  • Output Voltage: Adjustable from 0.8V to 7V
  • Efficiency: Up to 95%
  • Operating Temperature Range: -40°C to 85°C
