PT6984C

Part No PT6984C
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters

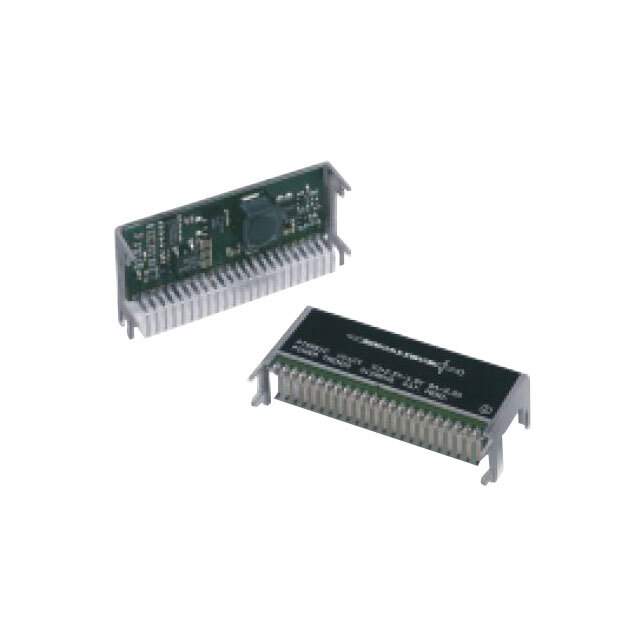

Description REG 3.3/1.2V 10A 12VIN SMD / Module DC-DC 12VIN 2-OUT 3.3V/1.2V 10A 23-Pin SIP Module
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Texas Instruments
Series Excalibur PT6980
Packaging Tray
Part Status Obsolete(EOL)
Type Non-Isolated PoL Module
Number of Outputs 2
Input Voltage MIN 10.8V
Voltage Input MAX 13.2V
Voltage - Output 1 3.3V
Voltage - Output 2 1.2V
Current - Output (Maximum) 8.6A, 1.6A
Applications ITE (Commercial)
Features Remote On/Off, SCP
Operating Temperature Range -40°C ~ 85°C
Efficiency 78%
Mounting SMD
Package 23-SMD Module
Dimension 2.58" L x 1.19" W x 0.43" H (65.5mm x 30.2mm x 10.9mm)
Win Source Part Number 792675-PT6984C
Popularity Medium
Supply and Demand Status Limited
Family Name PT6984
Introduction Date October 02, 2001
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PT6984C CAD Model

Description

The PT6984C is a high-performance power module from Texas Instruments (TI), designed to offer a compact and efficient power solution for a wide range of applications. This module is part of TI's extensive portfolio of integrated power solutions that combine in-depth technical expertise with a commitment to innovation.

Key Features

  • Integrated Design: The PT6984C integrates several components into a single package, including the controller, power switches, inductors, and support components. This integration simplifies design and reduces the overall footprint on the PCB.
  • High Efficiency: With its advanced design, the module achieves high efficiency, which helps to minimize heat generation and improve system reliability.
  • Adjustable Output: The output voltage of the PT6984C can be adjusted to meet the needs of various applications, providing design flexibility.
  • Thermal Management: The module is designed with thermal management in mind, featuring excellent heat dissipation capabilities to maintain optimal performance even under high load conditions.

Applications

The versatility of the PT6984C makes it suitable for a broad array of applications, including but not limited to:

  • Telecommunications equipment
  • Industrial systems
  • Networking equipment
  • Server and storage systems

Technical Specifications

The PT6984C boasts a range of technical specifications that underscore its capability to provide stable and efficient power. These specifications include a wide input voltage range, high output current capability, and a comprehensive set of protection features such as over-temperature, over-current, and under-voltage lockout.

Quality and Support

Texas Instruments is known for its commitment to quality and the PT6984C is no exception. Customers can expect robust support, including detailed datasheets, design resources, and a responsive technical support team to assist with any questions or design challenges.
