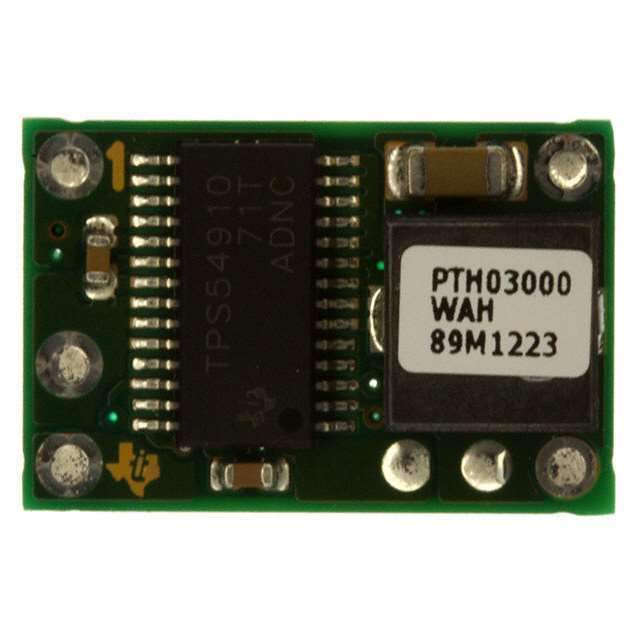

The PTH03000WAD is a high-performance, non-isolated module power supply from the renowned electronics manufacturer, Texas Instruments. This module is part of their extensive range of power management integrated circuits designed to cater to a wide array of applications across various industries.

Key Features

• Adjustable Output: The PTH03000WAD offers an adjustable output voltage range from 0.8V to 3.6V, which allows for high flexibility in applications that require different voltage levels.
• High Efficiency: With an efficiency of up to 95%, this power module ensures minimal power loss during operation, making it suitable for energy-sensitive designs.
• Wide Input Voltage Range: The module can operate with an input voltage range from 2.95V to 3.65V, accommodating various power supply standards and battery technologies.
• Large Output Current: It is capable of delivering up to 3A of output current, making it a robust choice for powering high-current devices.
• Power Good Signal: The inclusion of a 'power good' signal provides a system-level monitoring feature, indicating when the output is within its nominal voltage range.
• Thermal Protection: The device includes over-temperature protection, which safeguards the module against damage from excessive heat.
• Small Footprint: The compact size of the PTH03000WAD is ideal for space-constrained applications, without compromising on power or efficiency.

Applications

The versatility of the PTH03000WAD makes it an excellent choice for a diverse range of applications, including but not limited to:

• Telecommunications equipment
• Networking hardware such as switches and routers
• Industrial systems
• Test and measurement equipment
• Portable devices

With its robust feature set and Texas Instruments' reputation for quality, the PTH03000WAD module is a reliable and efficient solution for your power supply needs. Its performance and flexibility make it an essential component for engineers and designers looking to create sophisticated electronic systems.
