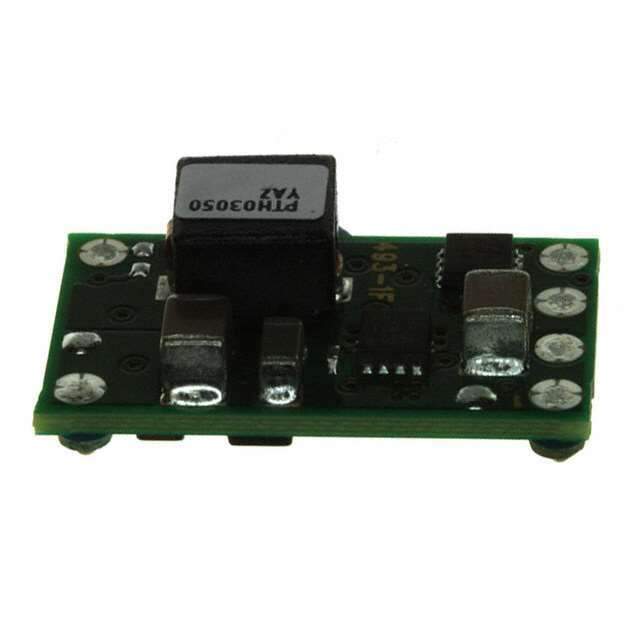

The PTH03050YAS is a high-performance, non-isolated module DC/DC converter designed by Texas Instruments. This compact and efficient module is part of the PTH series, renowned for its ease of use and robust performance in a variety of applications. The PTH03050YAS is particularly suited for distributed power architectures, telecommunications, battery-operated devices, and intermediate bus voltage applications.

Key Features:

• Wide Input Voltage Range: The PTH03050YAS operates with an input voltage range of 3.0V to 3.6V, making it versatile for various low-voltage applications.
• Adjustable Output Voltage: This module offers an output voltage that is adjustable from 0.8V to 2.5V, allowing for high flexibility to meet specific design requirements.
• High Efficiency: With an efficiency of up to 90%, this converter ensures minimal power loss and is ideal for energy-sensitive systems.
• High Output Current: It is capable of delivering up to 30A of output current, which is suitable for high-power applications.
• Small Footprint: The compact size of the PTH03050YAS, with a footprint of just 15.0mm x 9.0mm x 2.8mm, makes it an excellent choice for space-constrained applications.
• Thermal Protection: It includes an over-temperature protection feature, which ensures reliable operation under varying temperature conditions.
• On/Off Inhibit: The module comes with an on/off inhibit control, providing design flexibility and power-saving options.
• Low Ripple and Noise: The PTH03050YAS has been designed to have low ripple and noise characteristics, which is crucial for sensitive electronics and RF applications.

Applications:

The PTH03050YAS is suitable for a wide range of applications due to its versatile features. It is commonly used in:

• Telecommunications equipment
• Data acquisition systems
• Industrial controls
• Networking equipment
• Portable devices

With its robust set of features and compact design, the PTH03050YAS from Texas Instruments stands out as a powerful solution for your power conversion needs, ensuring efficiency, reliability, and performance in your electronic designs.
