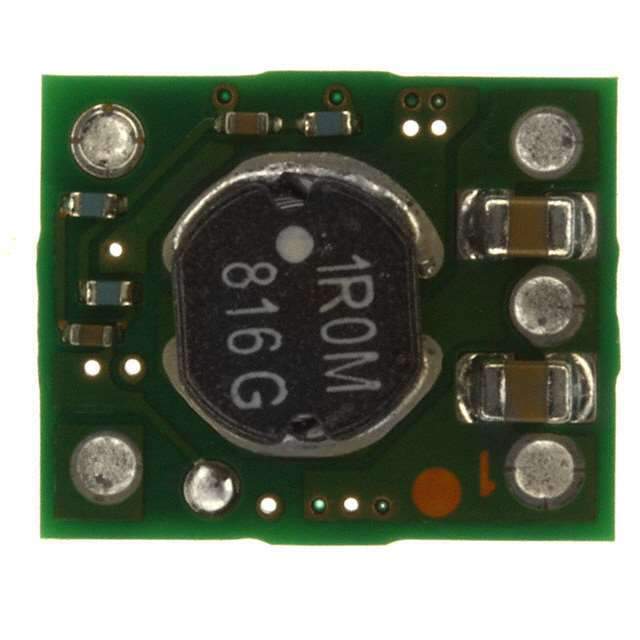

PTH04070WAZ Real Image
Same model may have multiple batches, images only for reference.

PTH04070WAZ

Part No PTH04070WAZ
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description Module DC-DC 3.3V/5VIN 1-OUT 0.9V to 3.6V 3A 5-Pin SMD Module Tray / MODULE PIP .9-3.6V 3A SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Standard Package 90
Category Power Supplies - Board Mount
Family DC DC Converters
Series PTH04070W
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 3V
Voltage - Input (Max) 5.5V
Voltage - Output 1 0.9 ~ 3.6 V
Current - Output (Max) 3A
Applications ITE (Commercial)
Features OCP UVLO
Mounting Style SMD/SMT
Package 5-SMD Module
Size / Dimension 0.50" L x 0.40" W x 0.32" H (12.7mm x 10.2mm x 8.1mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 92%
Power (Watts) - Max 10.8W
Catalog PTH04070W Series
Win Source Part Number 081181-PTH04070WAZ
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name PTH04070
Introduction Date April 01, 2005
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian PTH04070WAZ CAD Model

Description

The PTH04070WAZ is a high-performance, 15-W rated, non-isolated power module from Texas Instruments (TI), a renowned name in the field of semiconductors.

  • Input Voltage Range: 5V to 12V
  • Adjustable Output Voltage Range: 0.8V to 5.5V
  • Output Power: Up to 15W
  • Output Current: 3A
  • Auto-Track Sequencing: Yes
  • Efficiency: Up to 96% @ half load
  • Under-Voltage Lockout: Yes
  • Output Over-Current Protection: Yes
  • Over-Temperature Protection: Yes
