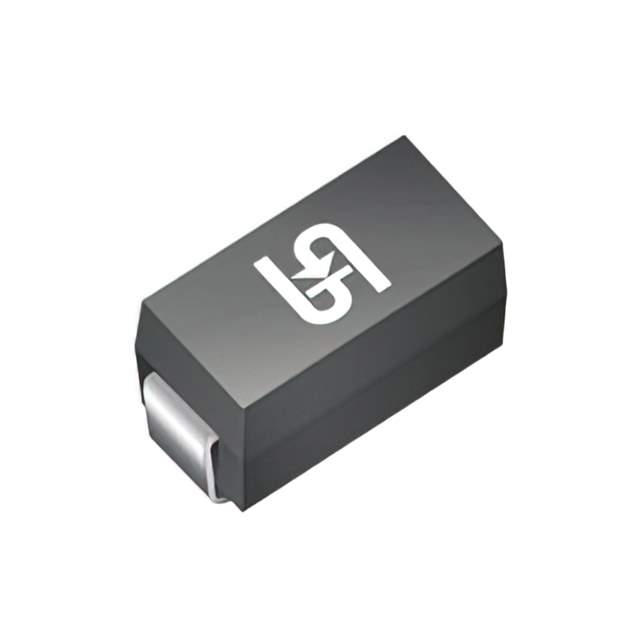

SMBJ24 Real Image
Same model may have multiple batches, images only for reference.

SMBJ24

Part No SMBJ24
Manufacturer Meritek
Catalog TVS - Diodes
Datasheet
SMBJ24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Meritek
Series SMBJ
Package Tape & Reel (TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 24V
Voltage - Breakdown (Min) 26.7V
Voltage - Clamping (Max) @ Ipp 43V
Current - Peak Pulse (10/1000µs) 13.95A
Power - Peak Pulse 600W
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C
Mounting SMD (SMT)
Package / Case DO-214AA (SMB)
Base Product Number SMBJ24
Other Names 2997-SMBJ24TR
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1299941-SMBJ24
Ultra Librarian 3D Model Ultra Librarian SMBJ24 CAD Model

Description

The SMBJ24 Zener diode is designed for use in general-purpose applications.

  • Channel: Unidirectional
  • Series: SMBJ
  • Package: Tape and reel
  • Voltage Breakdown Minimum: 26.7V
  • Voltage Reverse Standoff: 24V
  • Voltage Clamping Maximum @ Ipp: 43V
  • Power Peak Pulse: 600W
  • Power Line Protection: No
  • Capacitance @ Frequency: No
  • Current Peak Pulse: 13.95A
  • Mounting: SMD (SMT) technology
  • Package: DO-214AA (SMB)
  • Supplier: Meritek
