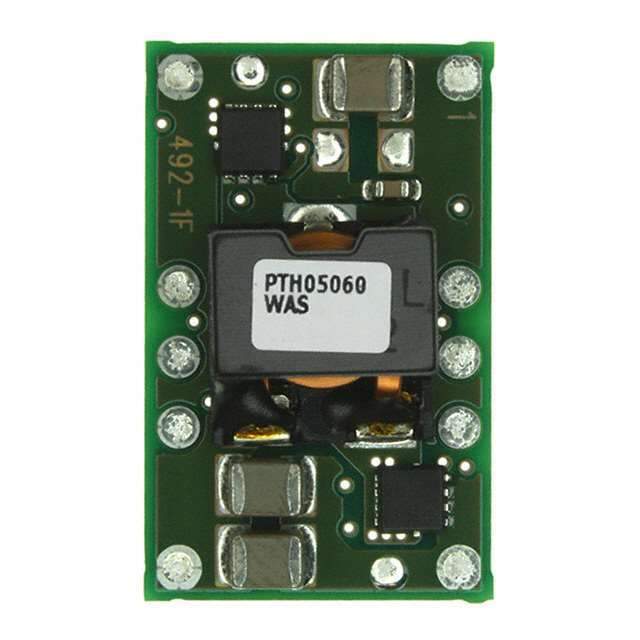

The PTH05060WAST is a high-performance, non-isolated module from Texas Instruments (TI) that offers a flexible power solution for a wide range of applications. With its input voltage range of 4.5V to 5.5V, this power module is designed to operate from a 5V bus. What sets the PTH05060WAST apart is its wide output voltage range, which can be adjusted from 0.8V to 3.6V, allowing for high versatility in various electronic systems.

Key Features

• Wide Output Voltage Range: The module provides an adjustable output voltage from 0.8V to 3.6V, catering to a variety of low voltage applications.
• High Efficiency: With an efficiency up to 95%, the PTH05060WAST ensures minimal power loss and heat generation.
• Output Current: Capable of delivering up to 6A of output current, this power module can support high power applications.
• Small Footprint: The compact size of the PTH05060WAST makes it an excellent choice for space-constrained applications.
• Thermal Protection: The module includes over-temperature protection to ensure reliable operation under various conditions.
• Output Voltage Sense: To ensure voltage accuracy at the load, the module features remote sense pins.

Applications

The PTH05060WAST is suitable for a diverse array of applications, including but not limited to:

• Telecommunications equipment
• Data acquisition systems
• Enterprise networking and storage systems
• Industrial control systems
• Point-of-load applications

Product Advantages

The PTH05060WAST module from Texas Instruments stands out in the market due to its exceptional flexibility and efficiency. Its wide output voltage range and high output current capability make it a versatile solution for many power management requirements. Additionally, the small form factor and integrated features such as thermal protection and remote voltage sensing contribute to a simplified design process, reducing the need for external components and saving board space.

Conclusion

With its robust feature set and high reliability, the PTH05060WAST from Texas Instruments is an excellent choice for designers looking to enhance their power management systems with a compact, efficient, and versatile module.
