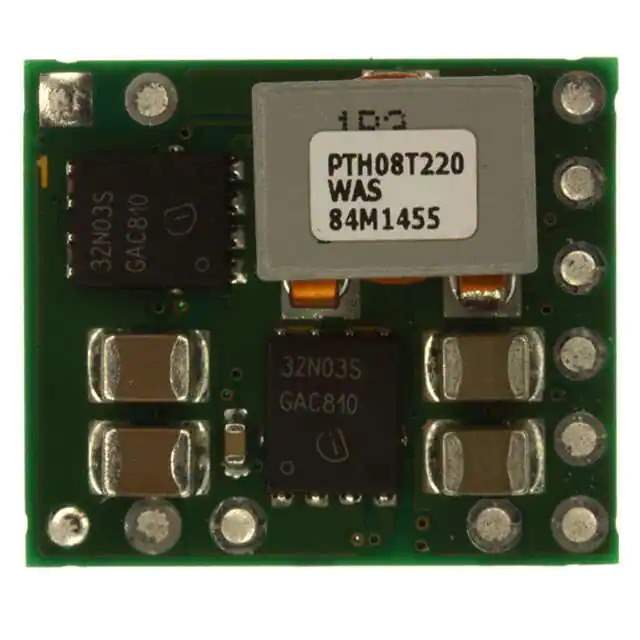

Product Overview: PTH08T220WAS from Texas Instruments

The PTH08T220WAS is a high-performance, adjustable non-isolated module from Texas Instruments that offers an exceptional range of features for power supply solutions. This module is part of the state-of-the-art Point-of-Load (POL) converters that facilitate efficient direct conversion from a 12V bus to the low voltage required for today's semiconductors, making it an ideal choice for a wide array of applications including computing, networking, and telecommunications equipment.

Key Features

• Output Voltage Range: The PTH08T220WAS provides an adjustable output voltage range from 0.69V to 5.5V, allowing for versatile use in various circuits and systems.
• High Efficiency: With an efficiency of up to 95%, this module ensures minimal power loss during operation, thereby reducing the thermal footprint and enhancing system reliability.
• High Output Current: It is capable of delivering up to 16A of output current, making it suitable for high-power applications.
• Auto-Track™ Sequencing: Texas Instruments' Auto-Track™ technology simplifies supply voltage sequencing in multi-rail power systems by allowing the outputs of multiple modules to track each other or an external voltage during power up and power down.
• Adjustable Switching Frequency: The module offers an adjustable switching frequency from 470kHz to 750kHz, which allows designers to optimize the performance based on their specific application needs.
• On/Off Inhibit: Users can control the module's operation via the on/off inhibit feature, providing additional flexibility and power-saving capabilities.
• Output Voltage Sense: The PTH08T220WAS includes an output voltage sense function for improved regulation and accuracy of the output voltage.
• Thermal Shutdown: Equipped with a thermal shutdown feature, the module ensures protection against overheating, further enhancing its reliability.

Applications

The PTH08T220WAS is designed to meet the needs of various applications that require a high-efficiency, adjustable power supply. Its robust design and flexible features make it an excellent choice for:

• Telecommunications Equipment
• Networking Hardware
• Servers and Storage Systems
• Industrial Equipment
• Computing Platforms

With its comprehensive feature set and proven reliability, the PTH08T220WAS from Texas Instruments is a top-tier power management solution for designers looking to optimize their power systems with precision, efficiency, and ease of use.
