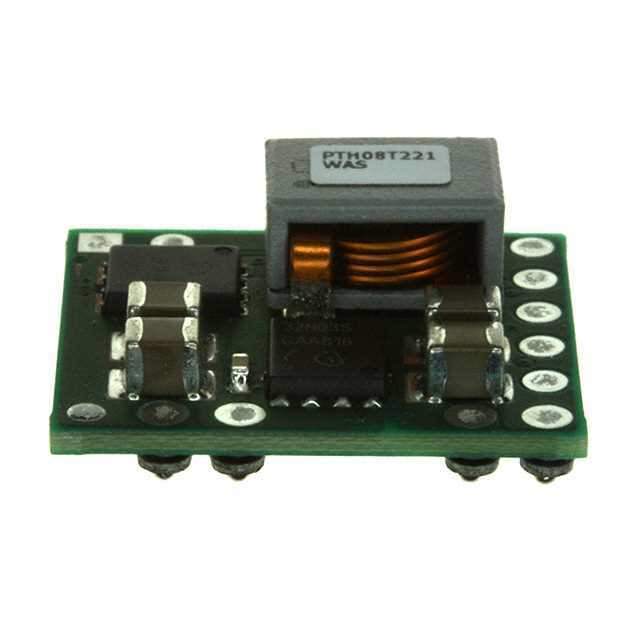

Product Overview: PTH08T221WAST from Texas Instruments

The PTH08T221WAST is a high-performance, adjustable non-isolated module with Power over Ethernet (PoE) capability, designed and manufactured by Texas Instruments. This advanced power solution is part of the PTH series, renowned for its efficiency and reliability, making it an ideal choice for a wide range of applications including telecommunications, industrial systems, and networking equipment.

Key Features

• Output Voltage Range: The PTH08T221WAST provides an adjustable output voltage range from 0.6V to 5.5V, which allows for great flexibility in powering various electronic components and systems.
• High Efficiency: With an efficiency of up to 96%, this power module ensures minimal power loss and heat generation, thereby improving the overall system performance and longevity.
• Input Voltage: It supports a wide input voltage range from 4.5V to 14V, making it compatible with various supply voltages and suitable for a diverse set of applications.
• Output Current: The module is capable of delivering up to 10A of continuous output current, providing sufficient power for high-demand devices.
• Thermal Performance: The PTH08T221WAST comes with an integrated heat sink and exceptional thermal design, ensuring it operates within its temperature range even under full load conditions.
• Power Good Output: This feature provides a signal that indicates when the output voltage is within its nominal range, which is essential for power sequencing and monitoring purposes.
• Protection Features: It includes over-current, over-temperature, and under-voltage lockout protections, safeguarding the module and connected devices from potential damage.

Applications

The versatility of the PTH08T221WAST makes it suitable for a variety of applications, such as:

• Telecommunication infrastructure
• Networking equipment like routers and switches
• Industrial and test equipment
• High-performance computing systems
• Server and storage systems

The PTH08T221WAST from Texas Instruments is a testament to the company's commitment to providing advanced power management solutions that meet the evolving needs of modern electronic systems. Its robust design, combined with high efficiency and flexibility, makes it an excellent choice for designers looking to optimize power in their next project.
