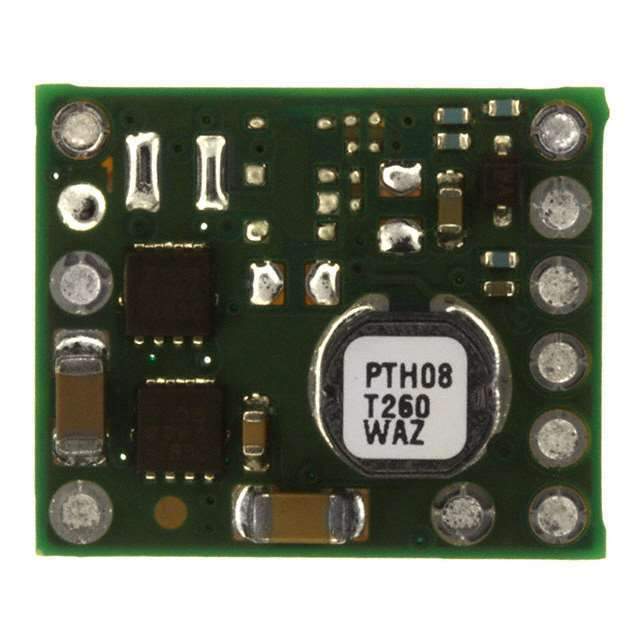

PTH08T260WAZ Real Image
Same model may have multiple batches, images only for reference.

PTH08T260WAZ

Part No PTH08T260WAZ
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description MODULE PIP 3A 4.5-14V HORZ 10SMD
Datasheet
PTH08T260WAZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series PTH08T260W
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 14V
Voltage - Output 1 0.69 ~ 5.5 V
Current - Output (Max) 3A
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, UVLO
Mounting Style SMD/SMT
Package 10-SMD Module
Size / Dimension 0.75" L x 0.62" W x 0.36" H (19.1mm x 15.7mm x 9.1mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 95%
Power (Watts) - Max 17W
Win Source Part Number 026953-PTH08T260WAZ
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTH08T260WAZ CAD Model

Description

The PTH08T260WAZ is a high-performance, 50-A rated, non-isolated power module from Texas Instruments.

  • Input Voltage Range: 4.5V to 14V
  • Output Voltage Options: 0.69V to 5.5V
  • Feature: Auto-Track™ sequencing
  • Feature: Pre-Biased start-up capability
  • Protection Features: Over-temperature, over-current, and under-voltage lockouts
  • Feature: Adjustable slow-start
  • Package: Compact, thermally efficient
  • Footprint: Double-sided surface mount (SMT)
