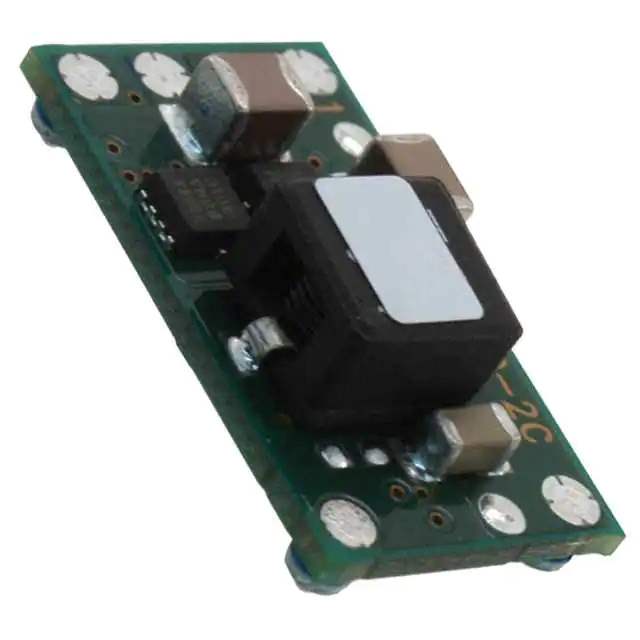

The PTH12050YAZT is a high-performance, non-isolated power module manufactured by Texas Instruments. Designed to deliver exceptional efficiency and flexibility, this module is an ideal choice for a wide range of applications that require a compact power solution with adjustable output voltage.

Key Features

• Wide Input Voltage Range: The PTH12050YAZT operates with an input voltage range of 10.8V to 13.2V, making it suitable for many intermediate bus architectures.
• Adjustable Output Voltage: This module offers an adjustable output voltage range from 0.8V to 1.8V, which can be precisely set to meet the needs of the load using a single external resistor.
• High Output Current: It is capable of delivering up to 50A of output current, providing ample power for demanding applications.
• Efficiency: The PTH12050YAZT boasts high efficiency, which minimizes power loss and heat generation, thereby simplifying thermal management.
• Power Density: With its compact footprint, this power module offers excellent power density, which is essential for space-constrained applications.
• Protection Features: It includes a comprehensive set of protection features such as over-temperature protection, over-current protection, and under-voltage lockout, ensuring reliable operation under adverse conditions.

Applications

The versatile nature of the PTH12050YAZT makes it suitable for a variety of applications, including:

• Telecommunications equipment
• Data processing systems
• Distributed power architectures
• Networking hardware
• Industrial systems

Quality and Reliability

Texas Instruments is renowned for its commitment to quality and reliability. The PTH12050YAZT is built with this commitment in mind, ensuring that it meets the stringent standards required by industrial and commercial applications. With its robust design and proven performance, this power module is a reliable choice for engineers and designers looking for a high-quality power solution.
