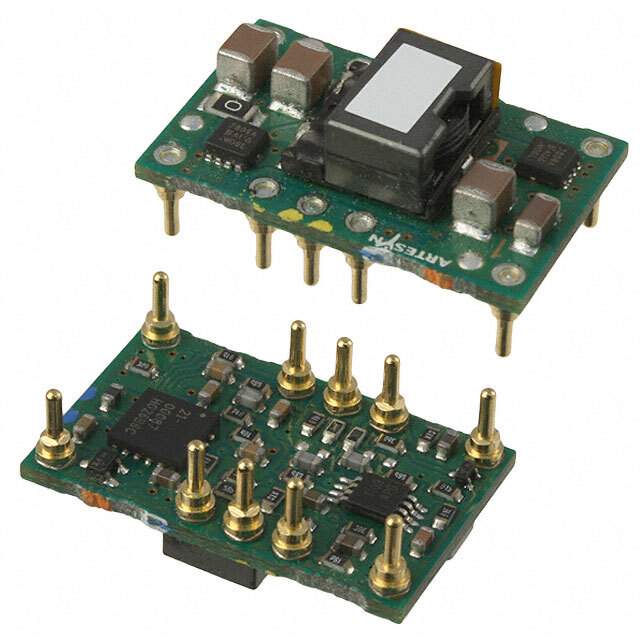

PTH12060WAH Real Image
Same model may have multiple batches, images only for reference.

PTH12060WAH

Part No PTH12060WAH
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description MODULE PIP 1.2-5.5V 10A TH 10DIP
Datasheet
PTH12060WAH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series PTH12060
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 1.2 ~ 5.5 V
Current - Output (Max) 10A
Applications ITE (Commercial)
Mounting Style Through Hole
Package 10-DIP Module
Size / Dimension 1.00" L x 0.62" W x 0.35" H (25.4mm x 15.7mm x 8.9mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 94%
Power (Watts) - Max 55W
Win Source Part Number 026961-PTH12060WAH
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PTH12060WAH CAD Model

Description

The PTH12060WAH is a high-performance, next-generation, non-isolated power module manufactured by Texas Instruments.

  • Output Voltage: adjustable from 0.8V to 1.8V
  • Input Voltage Range: 10.8V to 13.2V
  • Output Current: up to 10A
  • Efficiency: up to 96%
  • Over-temperature protection: Yes
  • Over-current protection: Yes
  • Package: compact, low-profile surface-mount package
  • Auto-Track sequencing: Yes
  • RoHS compliant: Yes
  • Applications: telecommunication equipment, data communication equipment, and server and storage systems
