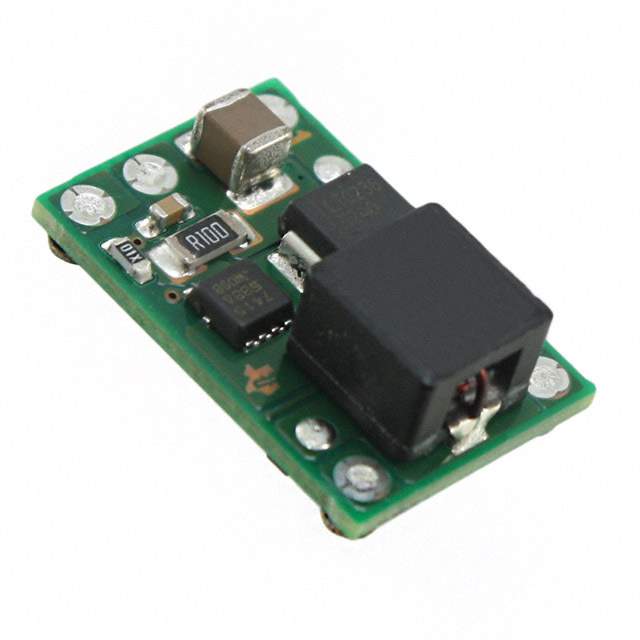

The PTN78000AAZT is a high-performance, adjustable step-down switcher module from Texas Instruments, renowned for its exceptional efficiency and flexibility. This power module is part of the wide-output voltage range, non-isolated PTN78000 series, designed to deliver excellent power conversion and regulation for a broad array of applications.

Key Features

• Wide Input Voltage Range: The PTN78000AAZT operates with an input voltage range of 7V to 36V, making it suitable for a variety of industrial and commercial power supply applications.
• Adjustable Output Voltage: Users can adjust the output voltage from 2.5V to 12.6V, providing versatility to power different levels of circuitry from a single module.
• High Efficiency: With an efficiency rate of up to 96%, this module ensures minimal power loss during operation, leading to a more reliable and energy-efficient power supply.
• Integrated Thermal Protection: The device includes an over-temperature protection feature that safeguards the module and the overall system from excessive heat.
• Under-Voltage Lockout (UVLO): The UVLO feature prevents the device from operating under insufficient input voltage conditions, ensuring the stability and safety of the power supply.

Applications

The PTN78000AAZT is a versatile power solution that can be used in a wide range of applications, including:

• Telecommunications equipment
• Industrial control systems
• Distributed power systems
• Portable devices
• Data acquisition systems

Product Specifications

With its robust feature set and adaptable performance, the Texas Instruments PTN78000AAZT switcher module is a top choice for designers looking for a reliable and efficient power conversion solution.
