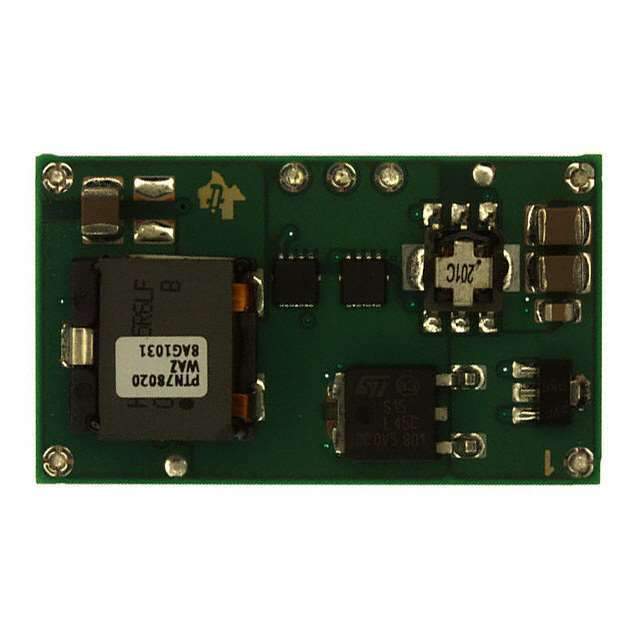

The PTN78020HAZ is a high-performance, adjustable step-down power module from Texas Instruments, designed to meet a wide range of power requirements for various applications. This versatile module is part of the PTN78020 series, which is known for its exceptional efficiency and reliability.

With an input voltage range of 7V to 36V, the PTN78020HAZ is capable of delivering an output voltage that can be adjusted from 2.5V to 12.6V, making it suitable for a variety of uses, including but not limited to industrial controls, telecommunications equipment, and distributed power systems. The output current capability of up to 3A ensures that this power module can handle high-demand situations with ease.

One of the key features of the PTN78020HAZ is its high efficiency, which can reach up to 95%. This means that it generates less heat and is more energy-efficient, which is crucial for maintaining the longevity of electronic components and for applications where thermal management is a concern.

The module comes in a compact, horizontally mounted SIP (Single In-line Package) that is designed for easy integration into a variety of circuit boards. The PTN78020HAZ also includes a number of built-in protection features, such as overcurrent and overtemperature protection, to ensure the safety and reliability of the module under various conditions.

Furthermore, the PTN78020HAZ does not require additional components such as external inductors, capacitors, or diodes, which simplifies the design and reduces the overall system cost. Its ease of use is enhanced by the inclusion of an on/off inhibit control, which allows for simple power sequencing and power-saving modes in complex systems.

Overall, the PTN78020HAZ from Texas Instruments is an excellent choice for designers looking for a robust, efficient, and flexible power solution that can be easily integrated into a wide range of electronic systems.
