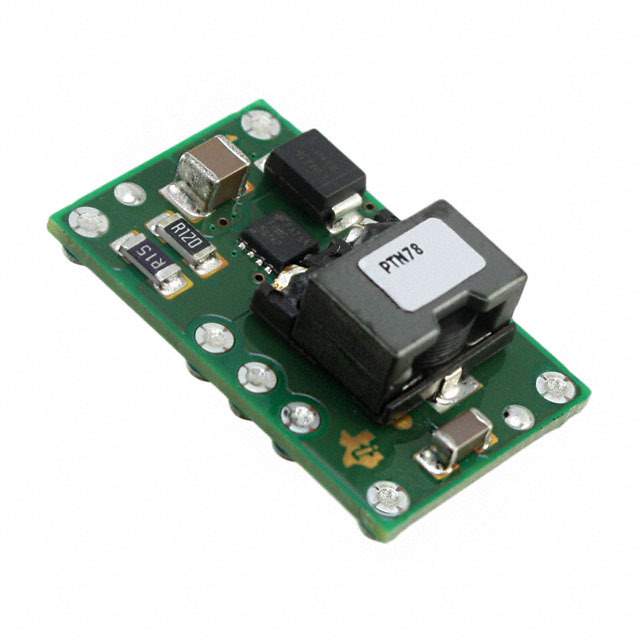

The PTN78060WAS from Texas Instruments is a high-performance, adjustable step-down integrated switching regulator that offers the flexibility and efficiency required for today's power supply designs. This regulator is part of the PTN78060 series, known for its wide-input voltage range, making it suitable for a variety of applications, from industrial to telecommunications and beyond.

Key Features:

• Wide Input Voltage Range: The PTN78060WAS operates over an input voltage range of 7V to 36V, making it versatile for use in systems with varying power levels.
• Adjustable Output Voltage: The output voltage can be set from 2.5V to 12.6V with a simple external resistor divider, providing design flexibility to power a wide range of devices.
• High Efficiency: With an efficiency up to 96%, this regulator ensures minimal power loss and heat generation, enhancing system reliability and performance.
• Integrated Switch: The device includes an integrated 3-A switch, which reduces external component count and simplifies design.
• Thermal Shutdown and Overcurrent Protection: Built-in safety features protect the regulator and the end application from potential damage due to excessive temperature or current conditions.
• Wide Operating Temperature Range: The PTN78060WAS is designed to operate over a temperature range of -40°C to 85°C, suitable for harsh environments.
• Small Footprint: The compact size of the module is ideal for space-constrained applications.

Applications:

The PTN78060WAS is a versatile component that can be used in a wide array of applications. Its robust feature set makes it ideal for:

• Telecommunications Equipment
• Industrial Systems
• Networking Equipment
• Portable Devices
• Point of Load Power Supplies

Conclusion:

With its wide input voltage range, high efficiency, and adjustable output voltage, the PTN78060WAS from Texas Instruments stands out as a powerful solution for modern power supply requirements. The integration of protective features and its suitability for a wide range of operating conditions makes it a reliable choice for designers looking to optimize their power systems with minimal design complexity.
