The REF5050AIDGKR is a high-precision voltage reference module designed and manufactured by Texas Instruments. This component is engineered to offer a stable and precise reference voltage, which is crucial for the accurate performance of analog-to-digital converters (ADCs), digital-to-analog converters (DACs), and other precision measurement devices.

Key Features

• Output Voltage: The REF5050 provides a fixed output voltage of 5V, which is essential for systems that require a stable reference.
• High Accuracy: It boasts an impressive initial accuracy of ±0.05%, ensuring reliable and consistent performance for precision applications.
• Low Temperature Coefficient: With a temperature coefficient as low as 8ppm/°C, the REF5050AIDGKR promises stable output across a wide temperature range, minimizing drift and maintaining accuracy under varying environmental conditions.
• Low Noise: This voltage reference IC features low noise of 3 µVPP/V, which makes it ideal for sensitive applications where noise can significantly impact performance.
• Low Dropout Voltage: The device operates with a low dropout voltage, enhancing its efficiency and making it suitable for low-voltage operations.

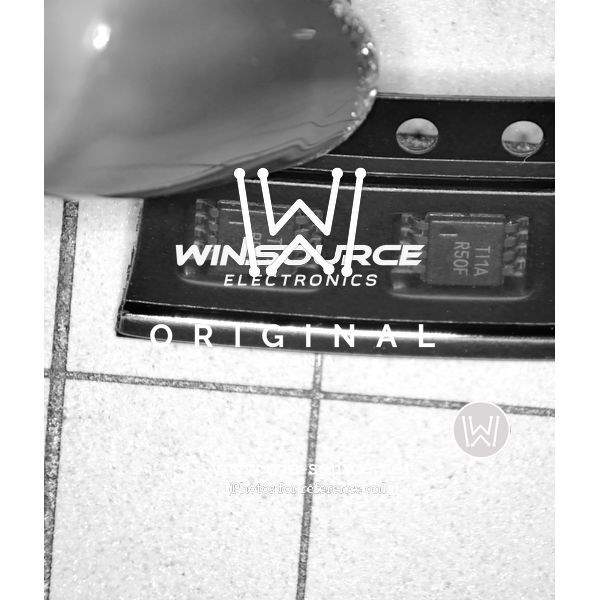

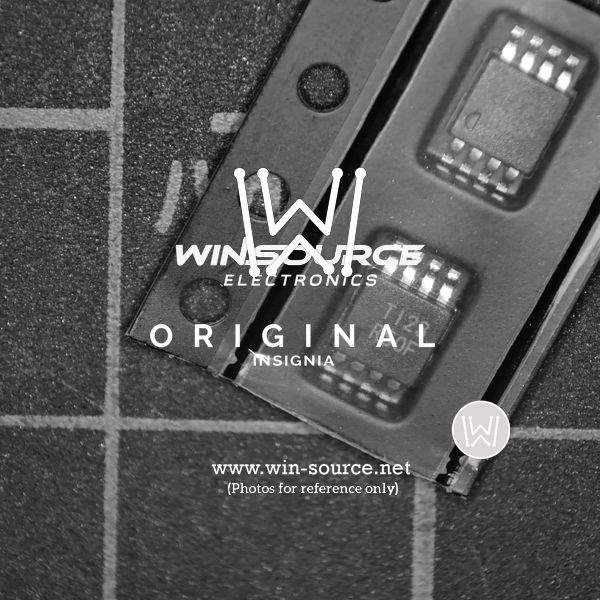

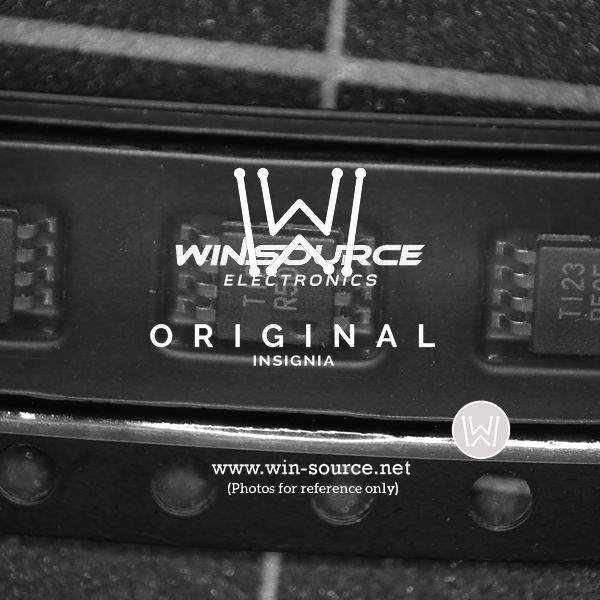

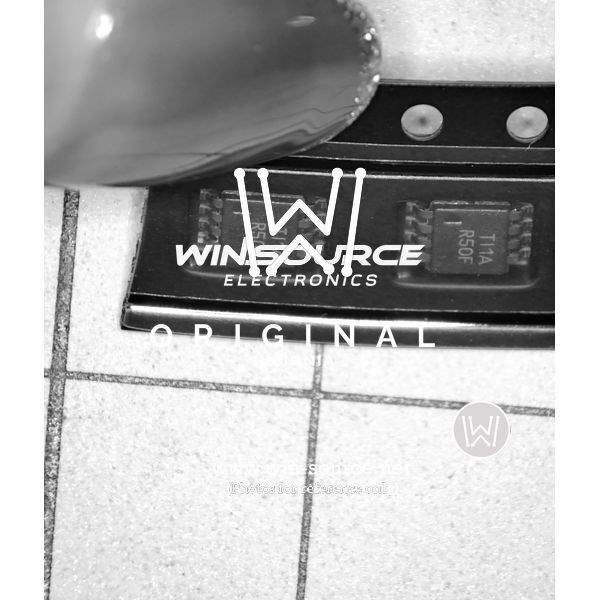

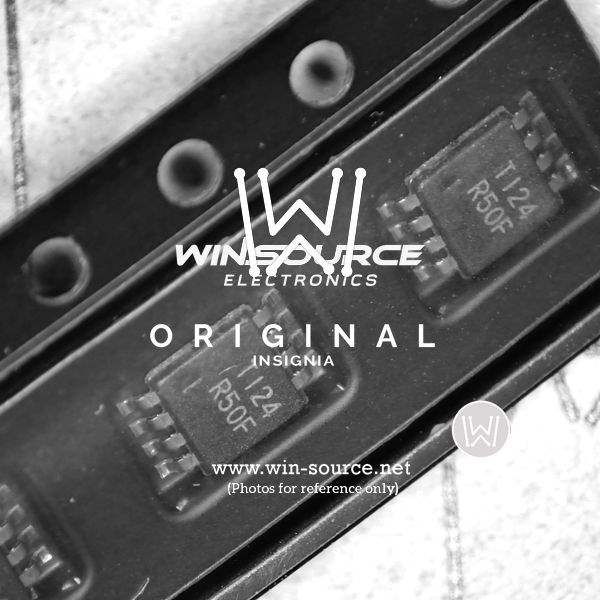

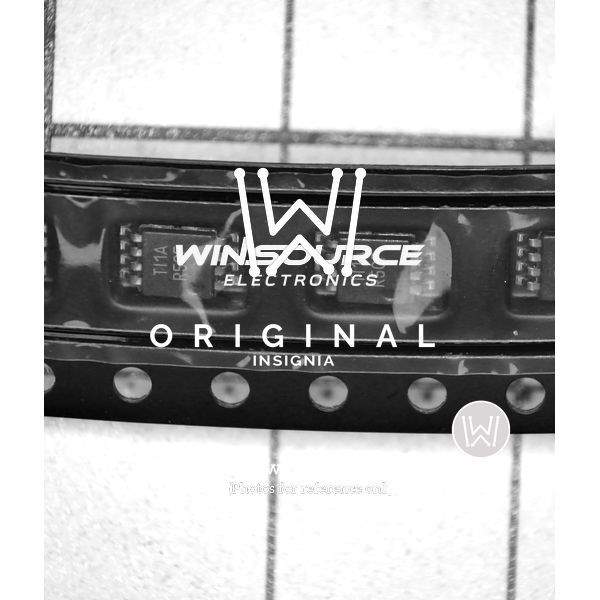

• Package: Housed in an 8-pin VSSOP package, the REF5050AIDGKR is compact and suitable for space-constrained applications.

Applications

The REF5050AIDGKR is versatile and can be used in a variety of applications, including:

• Precision data acquisition systems
• High-resolution ADCs and DACs
• Medical instruments
• Professional audio equipment
• Industrial process control systems
• Test and measurement equipment

Reliability and Support

Texas Instruments is known for its commitment to quality and reliability. The REF5050AIDGKR voltage reference IC is no exception, built to meet the stringent requirements of industrial and professional applications. Additionally, Texas Instruments provides comprehensive technical support and extensive documentation, including datasheets, application notes, and design tools to assist engineers in integrating this component into their designs.
