Product Overview: SN65HVD63RGTR by Texas Instruments

The SN65HVD63RGTR is a robust differential transceiver from Texas Instruments, designed to facilitate bidirectional data communications on multipoint bus transmission lines. It is a member of the 3.3V family of differential transceivers, making it suitable for interfacing with low-voltage circuits while maintaining strong signaling characteristics.

This device is specifically crafted for balanced and differential data transmission, and it conforms to the RS-485 and RS-422 communication standards. As such, it is well-suited for industrial applications that demand high-speed data transfer, noise immunity, and reliable performance in harsh environments.

Key Features:

• Bus-Pin ESD Protection: The SN65HVD63RGTR offers an impressive Electrostatic Discharge (ESD) protection for bus pins, exceeding the IEC 61000-4-2 (Level 4) standards.
• Extended Temperature Range: It operates over an industrial temperature range of -40°C to +125°C, ensuring reliability and functionality under extreme conditions.
• Low Power Consumption: The device features a low-power mode which significantly reduces current consumption when the transceiver is inactive, making it energy efficient.
• High Data Rates: With support for data rates up to 20 Mbps, this transceiver is capable of high-speed data transmission, which is essential for modern industrial networks.
• Differential Output Exceeding 2.1 V: The SN65HVD63RGTR ensures robust data signaling with a differential output that exceeds 2.1 V, providing a strong signal integrity over long cable runs.

Applications:

The versatility of the SN65HVD63RGTR makes it an ideal choice for a wide range of applications. Common uses include industrial control systems, building automation, factory automation, and any systems where a reliable data transmission is critical. Its robust design also makes it suitable for use in equipment operating in electrically noisy environments or those requiring extended operational temperature ranges.

Package and Availability:

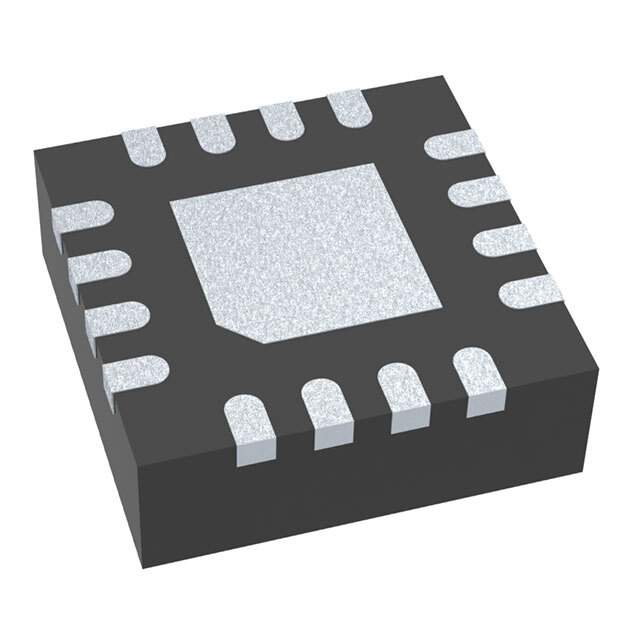

This transceiver comes in a compact 16-pin QFN package (RGTR) and is available for order in tape and reel form, facilitating efficient assembly for mass production. Texas Instruments provides comprehensive support with detailed datasheets, application notes, and design resources to help integrate the SN65HVD63RGTR into your next project.
