SN74AUP1G125YZTR by Texas Instruments

The SN74AUP1G125YZTR is a cutting-edge, single-bit buffer gate with a three-state output from the renowned semiconductor manufacturer, Texas Instruments (TI). This component is part of TI's advanced ultra-low-power Schottky (AUP) series, which is designed to operate with a very low power supply while maintaining excellent performance.

Operating within a voltage range of 0.8V to 3.6V, this device is optimized for low-voltage applications, making it ideal for modern, energy-efficient electronics. The SN74AUP1G125YZTR is particularly well-suited for handheld devices, portable media players, and other battery-operated gadgets where power consumption is a critical factor.

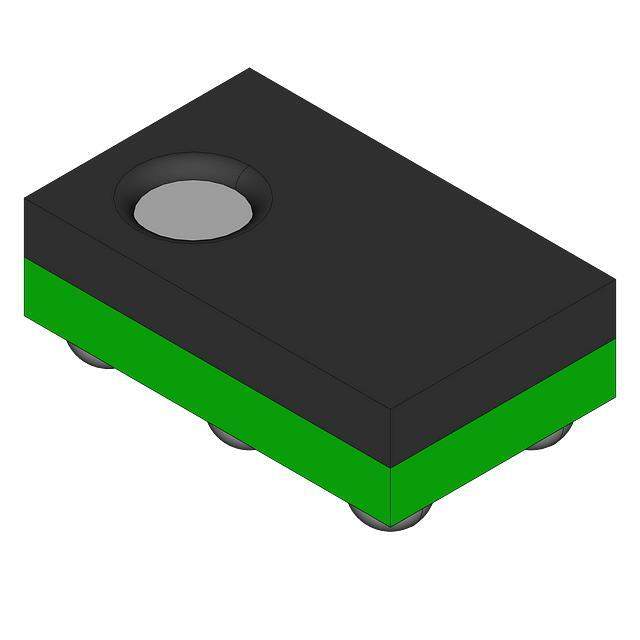

The device features a high level of integration and is housed in a compact, 5-pin SOT-23 package, which is conducive to space-constrained applications. Its small footprint allows for high-density mounting on PCBs, which is a boon for designers looking to minimize the size of their circuits without compromising on functionality.

One of the key characteristics of the SN74AUP1G125YZTR is its low static power consumption, with a typical I<sub>CC of only 0.9 µA. Additionally, the device boasts a low dynamic power consumption, with a C<sub>pd of only 4.2 pF at 3.3 V, contributing to overall energy savings in the system. This makes it an eco-friendly choice for modern electronic designs.

The SN74AUP1G125YZTR also features over-voltage tolerant inputs that allow it to be used in mixed-voltage system environments. It can interface with higher voltage levels, even when operating at lower supply voltages, without sustaining damage. This versatility simplifies the design of multi-voltage systems and enhances the robustness of the device.

In terms of performance, the buffer gate provides high drive capability, with the ability to source or sink up to ±8 mA at the output. This high drive strength is coupled with fast switching speeds, ensuring that the device can handle high-speed signals with ease.

Overall, the SN74AUP1G125YZTR from Texas Instruments is a high-performance, ultra-low-power buffer gate that offers designers a reliable and efficient solution for a wide range of applications.
