Product Overview: SN74AUP2G08YFPR by Texas Instruments

The SN74AUP2G08YFPR is a high-performance, dual 2-input positive-AND gate integrated circuit from Texas Instruments that combines the benefits of low power consumption with high-speed operation. This device is part of the advanced ultra-low power (AUP) family, which is designed to be suitable for battery-powered and energy-efficient applications.

Manufactured with a 0.8-V to 3.6-V V_CC operating voltage range, the SN74AUP2G08YFPR ensures compatibility with a wide range of supply voltages, making it versatile for various digital logic systems. Its low power consumption, characterized by a very low I_CC of 0.9 µA maximum, is particularly beneficial for portable and battery-operated devices where power efficiency is critical.

The device features a high drive strength with outputs that can source or sink up to 4 mA at 3.3 V, which allows for direct driving of LEDs or other low-power indicators without the need for additional buffer components. Furthermore, the SN74AUP2G08YFPR supports a fast propagation delay of typically 3.9 ns at 3.3 V, enabling quick response times in high-speed signal processing applications.

For improved system reliability, the SN74AUP2G08YFPR incorporates Schmitt-trigger action at all inputs, which makes the circuit tolerant to slower input rise and fall times. This feature helps to eliminate noise on the input signals, providing a cleaner and more stable digital output.

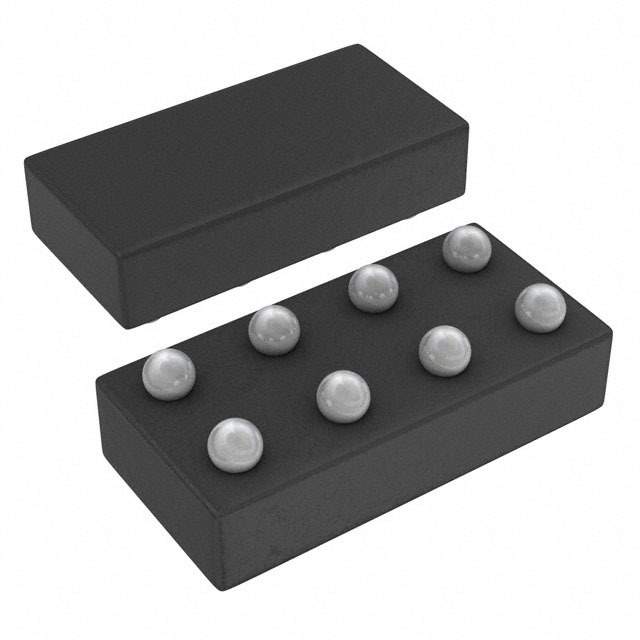

The compact footprint of the device is encapsulated in a space-saving 8-pin DSBGA package, making it an excellent choice for space-constrained applications such as smartphones, wearable technology, and other portable electronics. The device's pinout is designed for optimal PCB routing, further simplifying the design process for engineers.

With its robust design and advanced features, the SN74AUP2G08YFPR is an ideal solution for designers looking to enhance their digital logic systems while maintaining power efficiency and high-speed performance. Its reliability and versatility make it a go-to component for a broad range of electronic products.
