Product Overview: SN74AUP2G240YFPR from Texas Instruments

The SN74AUP2G240YFPR is a high-performance, dual-buffer driver IC from Texas Instruments, designed to address the needs of modern low-voltage and low-power applications. This device is part of the advanced ultra-low-power (AUP) series, which is optimized for 0.8-V to 3.6-V V<sub>CC operation. With its dual-buffer configuration, it is ideal for driving lines with high capacitance, providing buffering for bus lines, and separating input and output signals to prevent signal loading.

The SN74AUP2G240YFPR boasts a very low static power consumption of only 0.9 µA max and a dynamic power consumption of 0.1 µA/MHz at 3.3 V, making it an excellent choice for power-sensitive designs. It also features a low noise overshoot and undershoot characteristic, which is crucial for maintaining signal integrity in digital applications.

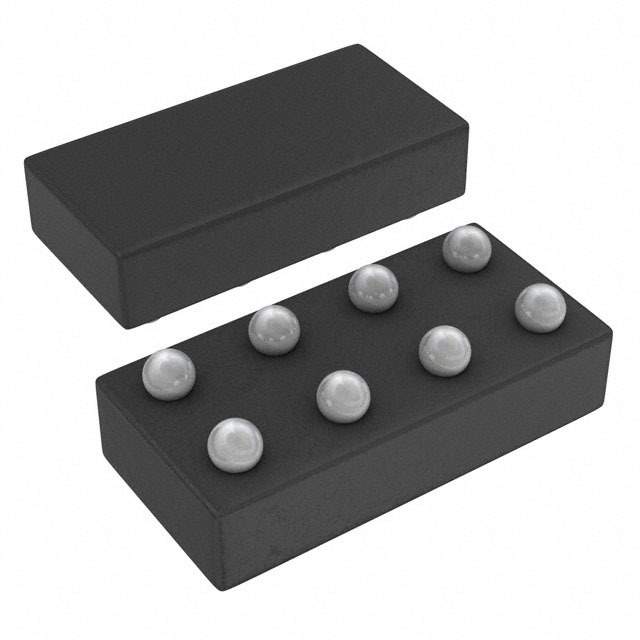

This IC comes in a compact DSBGA package, which is highly space-efficient and suitable for small form-factor electronic assemblies. The lead-free, RoHS-compliant packaging ensures that the product meets current environmental standards for electronic components.

Key Features:

• Low static power consumption: 0.9 µA max
• Dynamic power consumption: 0.1 µA/MHz at 3.3 V
• Wide operating voltage range: 0.8 V to 3.6 V
• Low noise: overshoot and undershoot characteristic
• Dual-buffer driver configuration
• DSBGA package for space-saving design
• Lead-free and RoHS-compliant

The SN74AUP2G240YFPR is a versatile component that can be implemented in a variety of digital systems, including mobile phones, PDAs, and other portable devices where power efficiency is a critical concern. Texas Instruments' commitment to innovation and quality makes this product a reliable and efficient solution for your circuit design needs.

For detailed technical specifications, application notes, and support documentation, please refer to the Texas Instruments official website or contact your local Texas Instruments sales representative.
