The SN74AXCH8T245RHLR from Texas Instruments is a state-of-the-art, 8-bit dual-supply bus transceiver designed with two 8-bit input-output ports (A and B). It is part of the extensive SN74 family, known for its reliability and performance in a wide range of digital applications. This transceiver is optimized for use in applications where two different voltage domains intersect, allowing for seamless voltage level translation.

This device is equipped with the latest technology to ensure high-speed data transfer with a max data rate of up to 380 Mbps. The SN74AXCH8T245RHLR operates over a broad voltage range (1.65 V to 3.6 V on the A side and 2.3 V to 5.5 V on the B side), making it highly versatile for interfacing between low-voltage and higher-voltage circuits. This feature is particularly useful in multi-voltage systems where signal integrity is paramount.

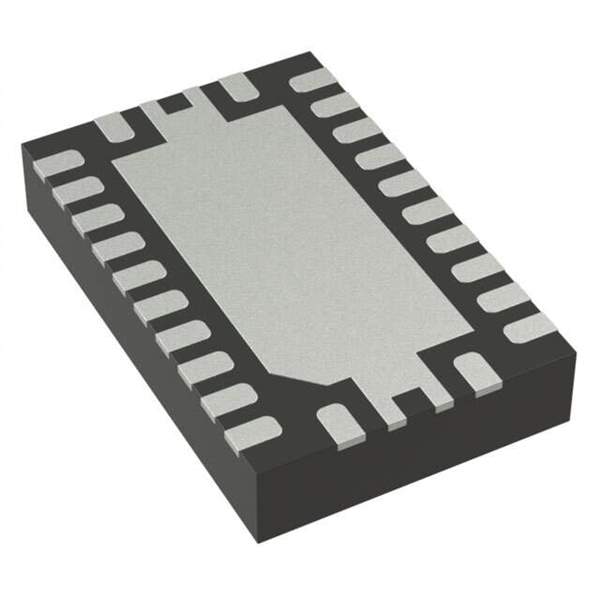

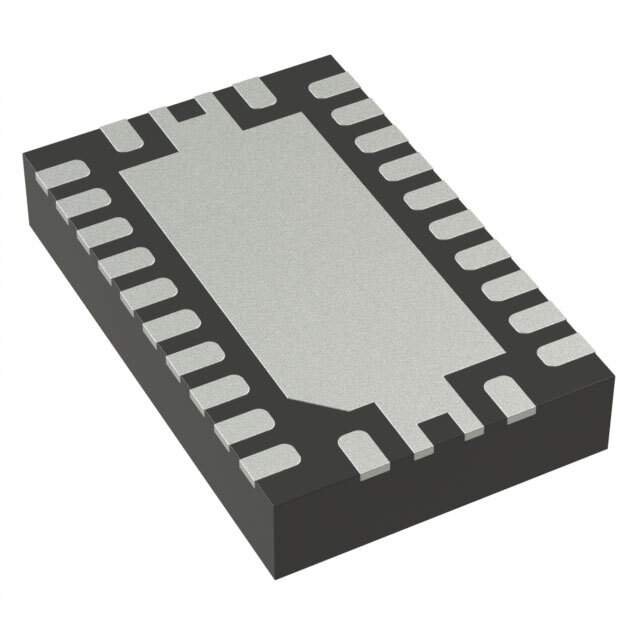

The SN74AXCH8T245RHLR comes in a refined VQFN (RHL) package, ensuring a compact footprint while providing excellent thermal performance. The device's design includes a DIR input that controls the direction of data flow, enabling the transceiver to shift data from the A port to the B port or vice versa. Additionally, the OE input activates or deactivates the outputs, offering further control over the data transmission and preventing data contention on the bus.

Texas Instruments has incorporated an auto-direction feature that simplifies the design by eliminating the need for an external direction control signal, thereby reducing the overall system complexity. The SN74AXCH8T245RHLR also boasts an Ioff feature that minimizes power consumption when the device is in a powered-down state.

The SN74AXCH8T245RHLR is designed for use in a multitude of applications, including but not limited to, telecommunications, computing, and industrial systems where reliable data transfer between different voltage domains is critical. Its robust design ensures that it can meet the stringent requirements of modern electronic systems, making it an essential component for designers looking to create high-performance, multi-voltage interfaces.
