SN74GTLPH32945KR - Texas Instruments Bus Transceiver

The SN74GTLPH32945KR, from Texas Instruments, is a high-performance bus transceiver chip designed to address the needs of high-speed data transfer and signal conditioning between different voltage domains. This integrated circuit is part of the GTLP (Gunning Transceiver Logic Plus) family, known for its ability to bridge the gap between lower voltage logic devices and higher voltage bus interfaces, making it an ideal solution for a wide range of applications in computing, networking, and telecommunication systems.

With its 32-bit bidirectional data path, the SN74GTLPH32945KR is capable of transferring data at a high rate while maintaining signal integrity and minimizing propagation delay. This feature is particularly beneficial in systems where rapid data exchange is critical, such as in server backplanes, workstations, and high-end computing devices.

The device operates with a 3.3V supply voltage and includes a set of features that enhance its performance and ease of use. For example, it supports bus hold on data inputs, which eliminates the need for external pull-up or pull-down resistors and simplifies board design. Additionally, the SN74GTLPH32945KR offers cold sparing on all pins, providing increased reliability and fault tolerance by allowing inactive circuits to be isolated from active ones without affecting system operation.

Key specifications of the SN74GTLPH32945KR include:

• 32-bit bidirectional data bus
• 3.3V supply voltage
• Bus hold feature on data inputs
• Cold sparing on all pins
• Low propagation delay
• Flow-through pinout for optimal PCB layout

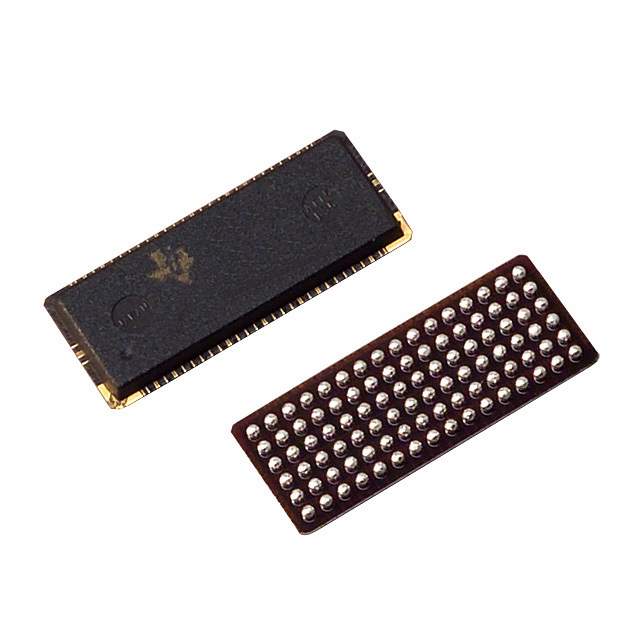

Encased in a 96-pin BGA (Ball Grid Array) package, the SN74GTLPH32945KR is designed for surface-mount technology, allowing for a compact footprint on printed circuit boards. This packaging also aids in efficient heat dissipation, which is crucial for maintaining performance in high-speed operations.

Overall, the SN74GTLPH32945KR is a robust solution for designers looking to facilitate fast and reliable communication between different logic levels within electronic systems. Its advanced features and proven technology from Texas Instruments make it a go-to choice for a multitude of high-speed interfacing applications.
