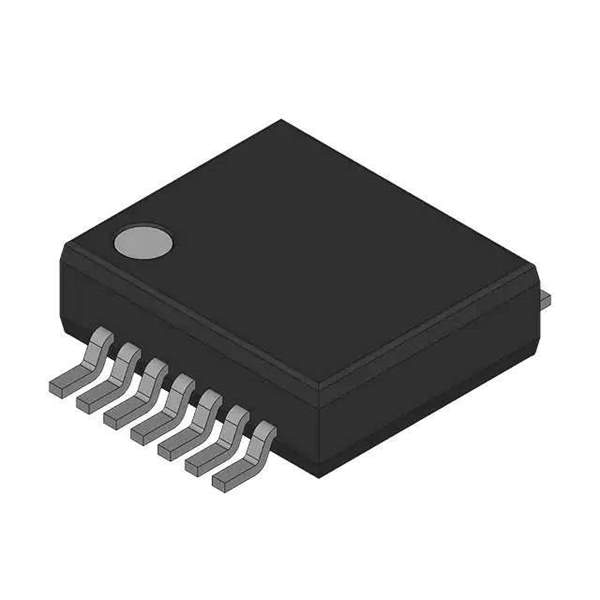

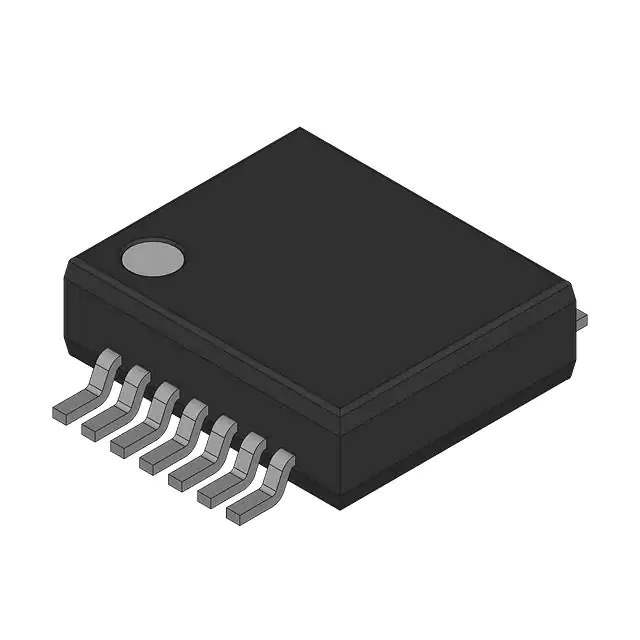

SN74HC00ADBR Real Image
Same model may have multiple batches, images only for reference.

SN74HC00ADBR

Part No SN74HC00ADBR
Manufacturer Texas Instruments
Catalog Logic - Gates and Inverters
Description IC GATE NAND 4CH 2-INP 14SSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Logic - Gates and Inverters
Mfr Texas Instruments
Series 74HC
Package Bulk
Product Status Active
Logic Type NAND Gate
Number of Circuits 4
Number of Inputs 2
Voltage - Supply 2V ~ 6V
Current - Quiescent (Max) 2 µA
Current - Output High, Low 5.2mA, 5.2mA
Input Logic Level - Low 0.1V ~ 0.26V
Input Logic Level - High 1.9V ~ 5.9V
Max Propagation Delay @ V, Max CL 13ns @ 6V, 50pF
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Supplier Device Package 14-SSOP
Package / Case 14-SSOP (0.209", 5.30mm Width)
Base Product Number 74HC00
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 333385-SN74HC00ADBR
Ultra Librarian 3D Model Ultra Librarian SN74HC00ADBR CAD Model

Description

The SN74HC00ADBR is a high-performance integrated circuit (IC) manufactured by Texas Instruments, a leading global semiconductor company.

  • Type: Quadruple 2-input positive-NAND gate IC
  • Series: SN74
  • Operating Voltage Range: 2V to 6V
  • Output Current: Up to 5.2 mA
  • Package: Small-outline package (SOP) with 14 pins
  • Compatibility: TI MSP430 and other low-voltage processors
  • Feature: Fully specified for partial-power-down applications using Ioff
