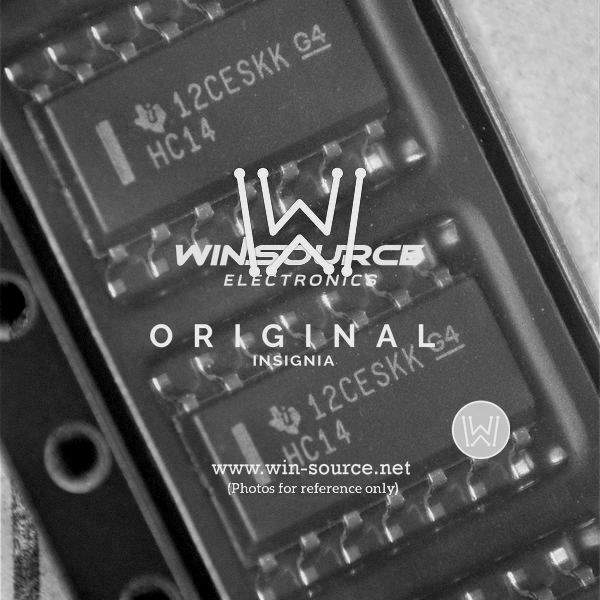

SN74HC14NSR Real Image SN74HC14NSR real image5983
Same model may have multiple batches, images only for reference.
SN74HC14NSR Real Image SN74HC14NSR real image5983
SN74HC14NSR Real Image SN74HC14NSR real image5983
Same model may have multiple batches, images only for reference.

SN74HC14NSR

Part No SN74HC14NSR
Manufacturer Texas Instruments
Catalog Logic - Gates and Inverters
Description IC HEX INVERTER SHMT-TRGR 14SO
Datasheet
SN74HC14NSR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Logic Type Inverter
Number of Circuits 6
Number of Inputs 6
Features Schmitt Trigger
Supply Voltage - Operating 2 V to 6 V
Current - Quiescent (Max) 2μA
Current - Output High, Low 5.2mA, 5.2mA
Logic Level - Low 0.3 V to 1.2 V
Logic Level - High 1.5 V to 4.2 V
Max Propagation Delay @ V, Max CL 21ns @ 6V, 50pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 14-SOP
Dimension 14-SOIC (0.209", 5.30mm Width)
Win Source Part Number 030120-SN74HC14NSR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SN74HC14NSR CAD Model

Description

The SN74HC14NSR is a high-performance, integrated circuit product manufactured by Texas Instruments, a renowned leader in semiconductor solutions.

  • Function: Hex Schmitt-Trigger Inverter
  • Voltage Range: 2V to 6V
  • Package: SOIC-14 package
  • Compliance: RoHS compliant
