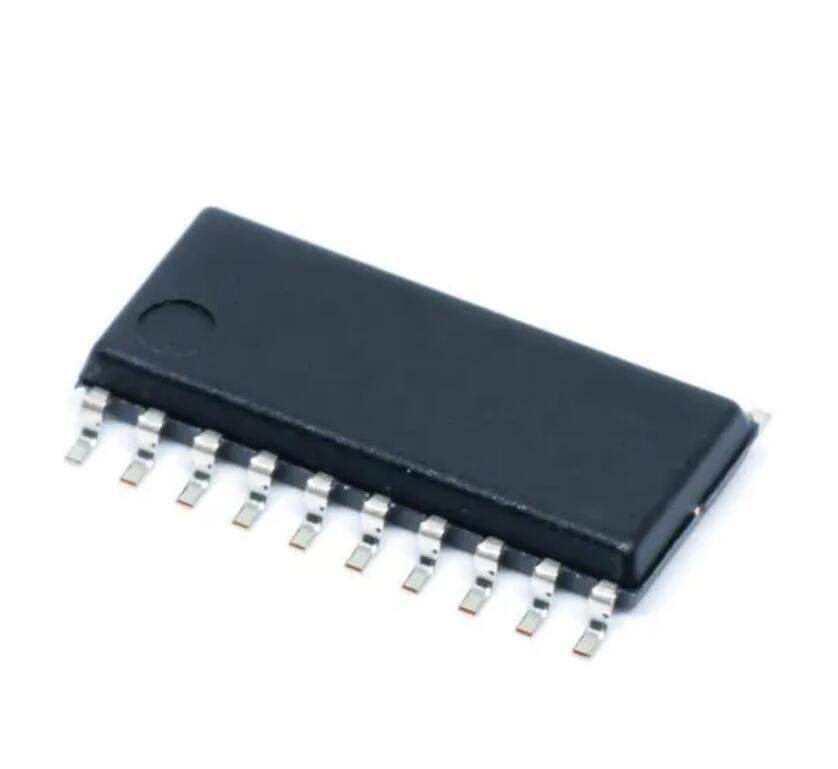

SN74LS541NS Octal Buffers and Line Drivers from Texas Instruments

The SN74LS541NS is a high-quality octal buffer and line driver designed to ensure reliable transmission of data signals in digital systems. Manufactured by Texas Instruments, a leader in semiconductor technology, this integrated circuit is part of the 7400 series logic family, known for its low-power Schottky (LS) technology.

Key Features

• Logic Type: Octal Buffers/Line Drivers with 3-State Outputs
• Operating Voltage: Typically 5V (4.75V to 5.25V)
• Output Current: High-level output current of -15mA and low-level of 24mA, suitable for driving multiple loads.
• Pin Configuration: 20-pin package, offering robust connectivity and easy integration into circuit designs.
• Temperature Range: Operates over a wide temperature range, making it suitable for various environmental conditions.
• 3-State Outputs: Facilitates bus-oriented applications by providing high-impedance states.

Applications

The SN74LS541NS is versatile and can be used in a wide array of applications including:

• Memory address drivers
• Data transmission systems
• Input/Output port drivers
• Buffer memory address registers

Quality and Reliability

Texas Instruments is committed to delivering high-quality products. The SN74LS541NS is no exception, as it undergoes rigorous testing and quality assurance processes to ensure it meets the industry's highest standards. With its proven durability and performance, this octal buffer and line driver is an excellent choice for designers looking to enhance the reliability and efficiency of their digital systems.

Product Summary

The SN74LS541NS from Texas Instruments stands out as a robust and reliable component, perfect for designers seeking to improve signal integrity in digital circuits. Its 3-state outputs and high drive capabilities make it an essential part of any digital logic system requiring efficient data transmission and buffering.
