The SN74LV367ANSR is an exceptional product from the reputable Texas Instruments. This device is a hex buffer and line driver designed specifically for 2-V to 5.5-V VCC operation. The device can perform multiple functions, including acting as a noninverting buffer or a line driver.

One of the significant attributes of the SN74LV367ANSR is its ability to drive 50-Ω transmission lines. It is designed to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.

With inputs and outputs on opposite sides of the package, this device allows for easy interface with microprocessors. It also enables the use of this device as two 4-bit buffers, one 6-bit buffer, or one 5-bit buffer and one 3-bit buffer.

It features typical tpd of 4.8 ns, low power consumption, and a ±24-mA output drive at 3.3 V. It also has an Ioff which supports live insertion, partial-power-down mode, and back-drive protection.

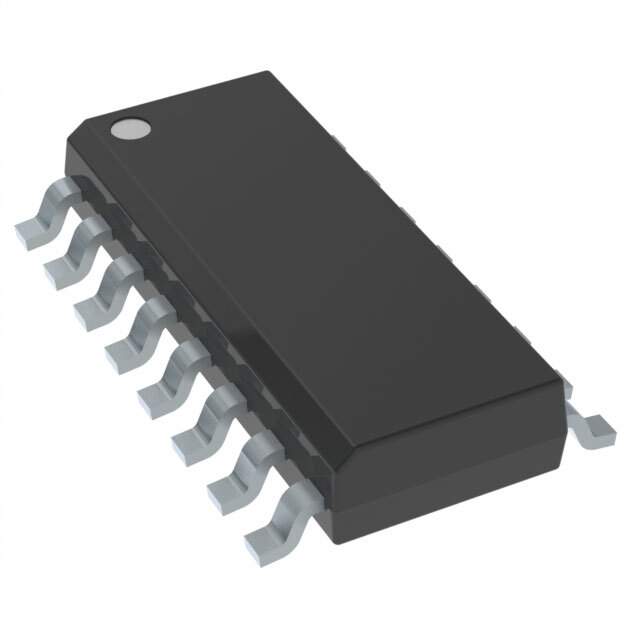

In terms of packaging and temperature performance, the SN74LV367ANSR comes in an NSOIC (20) 7.50 mm × 12.50 mm package. It operates optimally within a temperature range of -40°C to 85°C.

With its robust design and advanced features, the SN74LV367ANSR from Texas Instruments is an ideal choice for your electronic needs, promising high performance and reliability.
