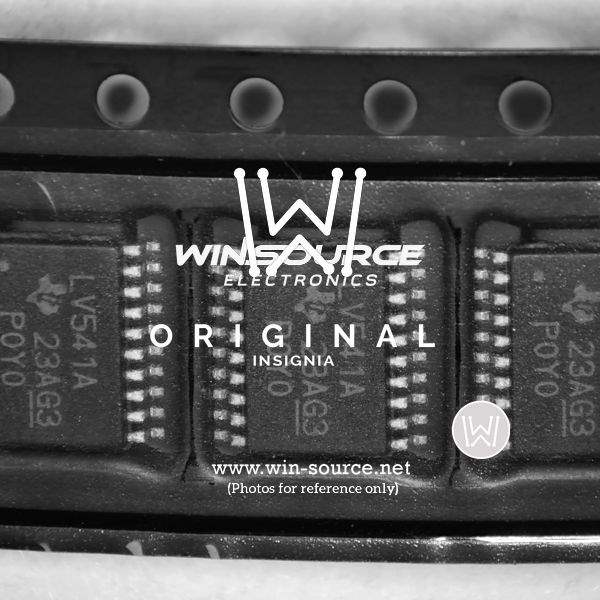

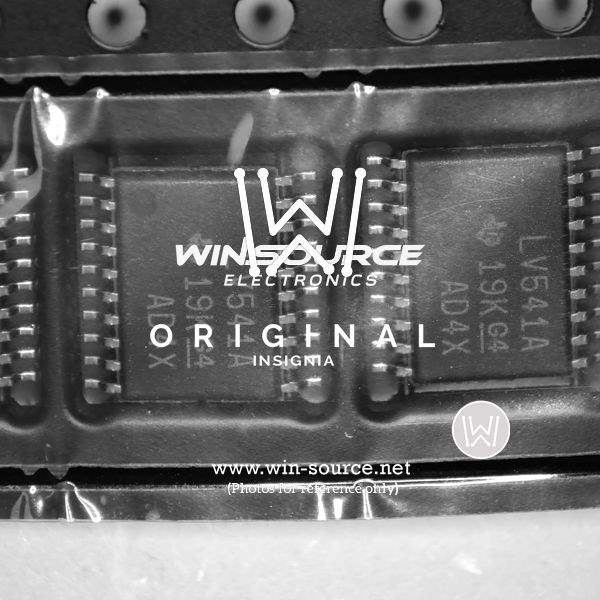

Product Overview: SN74LV541APWT

The SN74LV541APWT is a high-performance integrated circuit from Texas Instruments, renowned for its reliable and innovative semiconductor products. This particular device is an octal buffer and line driver designed to ensure smooth and efficient data flow in digital systems. It belongs to the 7400 series, which is well-known for its logic devices, and is specifically part of the LV (Low-Voltage) family, indicating its optimized power consumption characteristics.

Key Features

• Logic Type: Octal Buffer/Line Driver with 3-state outputs
• Voltage Range: Operates at a voltage range of 2V to 5.5V, making it suitable for interfacing with both TTL and CMOS logic levels.
• Drive Capability: Capable of driving heavily loaded outputs with 32 mA at 5V, ensuring strong signal transmission over long traces or to multiple receivers.
• Speed: Provides fast data transfer with propagation delay times significantly reduced, ensuring high-speed operation for modern digital applications.
• Power Dissipation: Features a low power consumption, which is critical for battery-powered and energy-sensitive applications.
• Package: Comes in a TSSOP (Thin Shrink Small Outline Package) with 20 pins, offering a compact footprint for space-constrained applications.

Applications

The SN74LV541APWT is highly versatile and can be used in a wide array of applications including:

• Data communication and telecommunication systems
• Computers and computer peripherals
• Microprocessor or microcontroller interfacing
• Signal buffering and driving for bus-oriented systems
• Portable and battery-powered electronics

Quality and Reliability

As with all Texas Instruments products, the SN74LV541APWT is manufactured to the highest quality standards. It undergoes rigorous testing to ensure its performance and reliability in a range of environmental conditions. Customers can trust this device for critical and demanding applications where consistent operation is paramount.
