Product Overview: SN74LVC1G125DRLR by Texas Instruments

The SN74LVC1G125DRLR is a single line driver device from Texas Instruments, designed to deliver high-performance, low-voltage operation suitable for a wide range of applications. This single buffer/driver with 3-state output is part of the LVC family, which is renowned for its low-voltage operation and high drive strength.

Key Features

• Operating Voltage Range: The device supports a wide range of supply voltages from 1.65V to 5.5V, making it versatile for interfacing with both 3.3V and 5V logic levels.
• High Drive: With the capability to drive up to ±24mA at the output, this buffer/driver can easily drive heavy loads, making it ideal for driving address or data buses.
• Low Power Consumption: The SN74LVC1G125DRLR is designed for low dynamic power consumption, with a typical ICC of only 10 μA (max).
• 3-State Outputs: The device features a 3-state output which can be put in a high impedance state, thus allowing it to be used in bus-oriented systems.
• Schmitt-Trigger Inputs: Inputs include Schmitt triggers that provide a hysteresis that enhances noise immunity and allows for slow input transition.
• ESD Protection: It offers excellent protection against electrostatic discharge (ESD) with 4-kV HBM and 200-V MM protection on all pins, ensuring robustness for industrial applications.

Applications

The SN74LVC1G125DRLR is ideal for a multitude of applications that require a single line driver with high-drive and low-power characteristics. These applications include but are not limited to:

• Signal buffering for bidirectional bus transmission
• Memory address driving
• Driving heavy capacitive or low-resistance loads
• Logic level translation between different voltage domains

Package and Quality

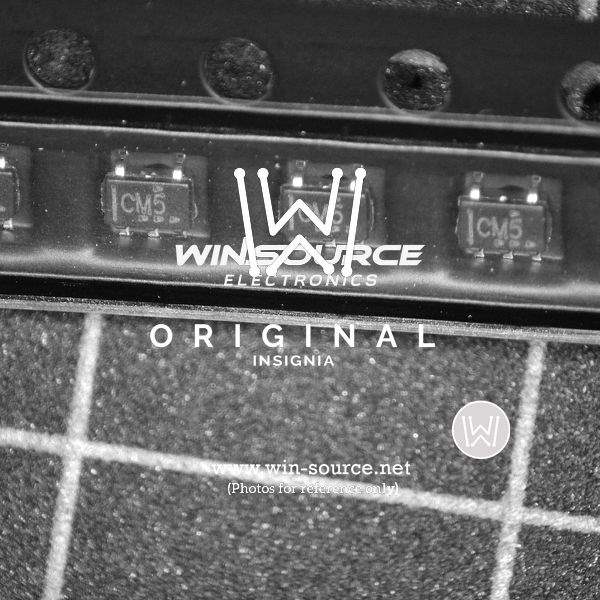

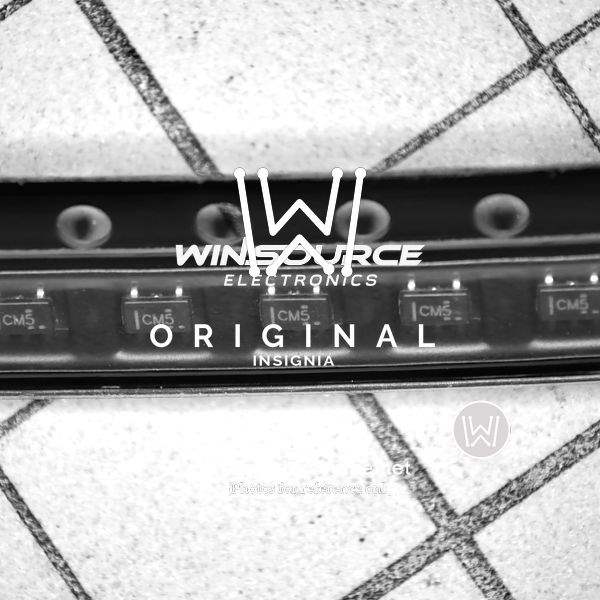

Packaged in a small SOT-5X3 (DRL) package, the SN74LVC1G125DRLR is space-efficient, making it an excellent choice for compact PCB layouts. It is also characterized for operation from -40°C to 85°C, ensuring reliability across a broad range of environmental conditions. Texas Instruments is committed to high-quality manufacturing standards, ensuring that this product meets rigorous industry requirements for performance and reliability.
