Product Overview: SN74LVC1G126DRYR

The SN74LVC1G126DRYR is a high-performance, single-line driver from Texas Instruments, designed with the modern electronic engineer’s needs in mind. This device belongs to the 74LVC family, which is renowned for its low-voltage operation and compatibility with 5V systems.

Key Features

• Single Bus Buffer Gate with 3-State Output: The SN74LVC1G126DRYR features a single bus buffer gate with a 3-state output, which allows the output to be set to high impedance. This is essential for bus-oriented systems where multiple outputs can connect to a bus without conflict.
• Low-Voltage Operation: This device operates at a voltage range of 1.65 to 5.5V, making it ideal for interfacing with both 3.3V and 5V systems and ensuring compatibility with a wide range of digital circuits.
• High Drive: The SN74LVC1G126DRYR can source or sink up to 24 mA at the output, providing sufficient drive capability for most applications.
• ESD Protection: The device includes robust electrostatic discharge (ESD) protection, ensuring reliability and longevity in harsh environments.

Applications

The versatility of the SN74LVC1G126DRYR makes it suitable for a variety of applications, including:

• Bus line driving
• Memory address driving
• Switching between data sources
• Signal gating

Technical Specifications

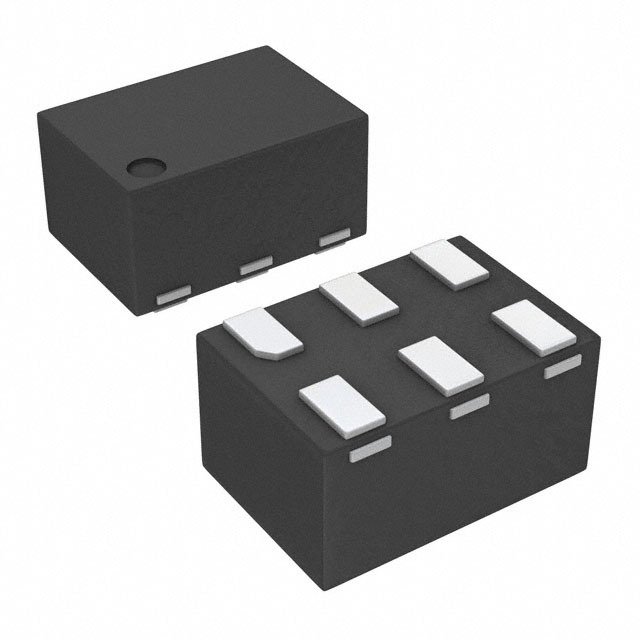

The SN74LVC1G126DRYR comes in a small 6-pin SOT-363 package, which is ideal for space-constrained applications. The device's performance is characterized by a typical propagation delay of 3.4 ns at 3.3V, ensuring fast response times for critical applications.

Quality and Environmental

Texas Instruments is committed to providing high-quality products that meet stringent industry standards. The SN74LVC1G126DRYR is no exception, with certifications that may include but are not limited to RoHS compliance and lead-free construction, providing an environmentally friendly option for your circuit designs.

For detailed information, including datasheets, technical documents, and support, please visit the Texas Instruments official website or contact your local Texas Instruments distributor.
