The SN74LVC2G66DCURG4 is a high-performance, dual single-pole double-throw (SPDT) analog switch integrated circuit (IC) from Texas Instruments. This versatile component is designed for multiplexing and signal gating applications across a broad range of products. With its low power consumption and wide operating voltage range, the SN74LVC2G66DCURG4 is ideal for battery-operated and portable devices, as well as for general-purpose analog switching.

The device is characterized by its low ON-state resistance, typically around 0.5 Ohms, ensuring minimal signal distortion and power loss when conducting. Furthermore, the switch features a high OFF-state resistance that provides excellent isolation between channels when in the non-conducting state. This makes it suitable for various applications where high signal integrity is paramount.

Designed with the needs of modern electronics in mind, the SN74LVC2G66DCURG4 operates over a supply voltage range of 1.65V to 5.5V, allowing it to interface seamlessly with both 3.3V and 5V logic levels. This compatibility is essential for mixed-voltage systems and for interfacing with microcontrollers and other digital logic that may operate at different voltage levels.

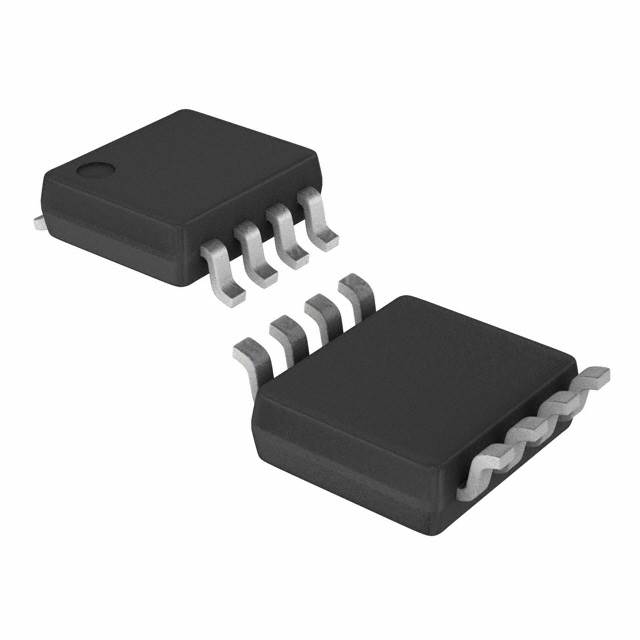

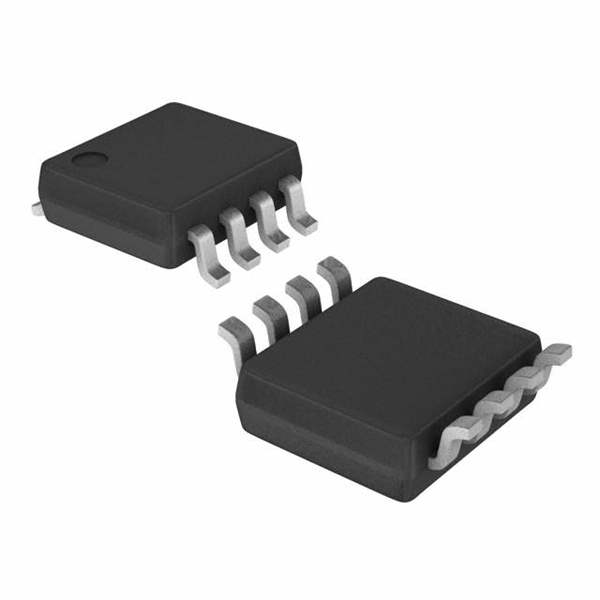

The device is available in an ultra-small 8-pin VSSOP package (DCU), providing a compact footprint that is highly beneficial for space-constrained applications. The package is also lead-free and RoHS compliant, adhering to environmental standards and regulations.

Key features of the SN74LVC2G66DCURG4 include:

• Wide VCC Range: 1.65V to 5.5V
• Low ON-state resistance (RON)
• High OFF-state resistance for effective channel isolation
• 5-V tolerant inputs
• Low crosstalk between switches
• Low power consumption
• Latch-up performance exceeds 100 mA per JESD 78, Class II
• ESD protection exceeds JESD 22

The SN74LVC2G66DCURG4 is an excellent choice for designers looking for a reliable, high-performance analog switch that can be used in a wide array of applications, including signal routing, data acquisition systems, communications equipment, and consumer electronics.
