Product Overview: SN74LXC2T45DCUR by Texas Instruments

The SN74LXC2T45DCUR is a versatile, dual-bit, dual-supply level translator from Texas Instruments. This device is designed to address the need for translating signals between two different voltage nodes, allowing seamless communication within mixed-voltage systems. It is an essential component for modern electronics where interfacing between various logic levels is required.

The SN74LXC2T45DCUR operates over a broad voltage range of 1.65V to 5.5V on both the A and B ports. This makes it suitable for translating between lower voltage logic levels, such as those used in batteries and portable devices, and the higher logic levels found in fixed-power supply applications. The dual-bit configuration enables simultaneous translation of two signal lines, which is efficient for bus interfaces or paired signal lines.

One of the key features of this level translator is the auto-direction sensing, which eliminates the need for a direction-control signal. This feature simplifies the design and reduces the control pin count, which is particularly beneficial in applications where PCB space is at a premium. The device also includes a power-off protection feature that ensures the I/O ports enter a high-impedance state when the power is removed, thus preventing damage to the device or other components in the circuit.

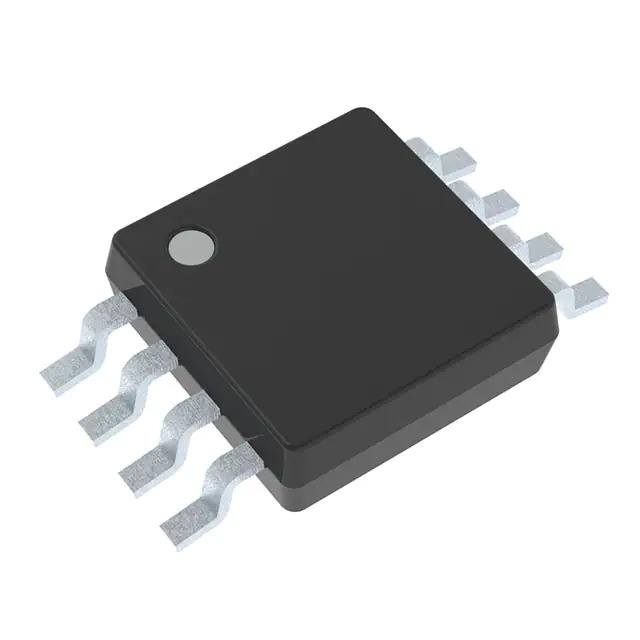

The SN74LXC2T45DCUR comes in a small 8-pin VSSOP (DCU) package, making it ideal for space-constrained applications. Its low power consumption and wide operating temperature range of -40°C to +85°C ensure reliable operation in various environments, from industrial to consumer electronics.

In summary, the SN74LXC2T45DCUR from Texas Instruments is a highly reliable and versatile level translator that offers ease of use, flexibility, and efficiency for designers dealing with multi-voltage systems. Its dual-bit capability, auto-direction sensing, and power-off protection make it an excellent choice for a wide range of applications, including but not limited to, mobile devices, computing, networking, and telecommunications equipment.
