The SNJ54F109W from Texas Instruments is a high-quality integrated circuit that belongs to the 54F series. It is a dual J-K positive-edge-triggered flip-flop with a clear function, designed to perform with precision in a variety of digital applications. This device is particularly well-suited for use in counters, control circuits, and toggle applications where reliable performance is essential.

Key Features

• Logic Type: J-K Flip-Flop - The device features two J-K flip-flops which can be used independently or in tandem, providing versatility in its application.
• Edge Type: Positive-Edge-Triggered - The flip-flops are triggered on the rising edge of the clock input, ensuring synchronized operation within digital systems.
• Clear Function: Asynchronous clear - The clear input allows for the immediate resetting of the flip-flop outputs to a low state, regardless of the clock.
• Output Capability: Standard - The SNJ54F109W provides reliable output drive capability, compatible with a variety of digital components.
• Supply Voltage: The device operates over a wide supply voltage range, accommodating various levels of logic and power requirements.
• Operating Temperature Range: The military-grade temperature range ensures reliable operation in extreme environments.

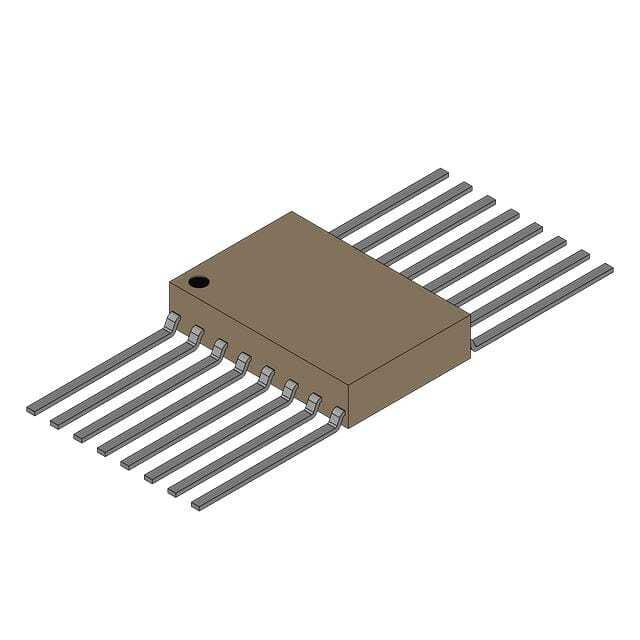

• Packaging: The product is available in a ceramic flat package, which provides robust physical protection and thermal stability.

Applications

The SNJ54F109W is designed for use in environments where high reliability is paramount. It is commonly used in:

• Military and aerospace applications
• Industrial control systems
• Professional communication equipment
• Complex logic systems requiring high-speed and precise edge-triggered flip-flops

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the SNJ54F109W is no exception. Each device is rigorously tested to meet the stringent requirements of military standards, ensuring peak performance and reliability. With Texas Instruments' reputation for excellence in the semiconductor industry, you can trust the SNJ54F109W to perform consistently in the most demanding applications.
