TAS2555YZT

Part No TAS2555YZT
Manufacturer Texas Instruments
Catalog Linear - Amplifiers - Audio
Description Class-D Mono Audio Amplifier
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Texas Instruments
Packaging Reel - TR
Type Class D
Output Type 1-Channel (Mono)
Max Output Power x Channels @ Load 5.7W x1 @ 4 Ohm
Operating Supply Voltage 1.65 V ~ 1.95 V
Features Short-Circuit and Thermal Protection
Mounting SMD
Operating Temperature Range -40°C ~ 85°C (TA)

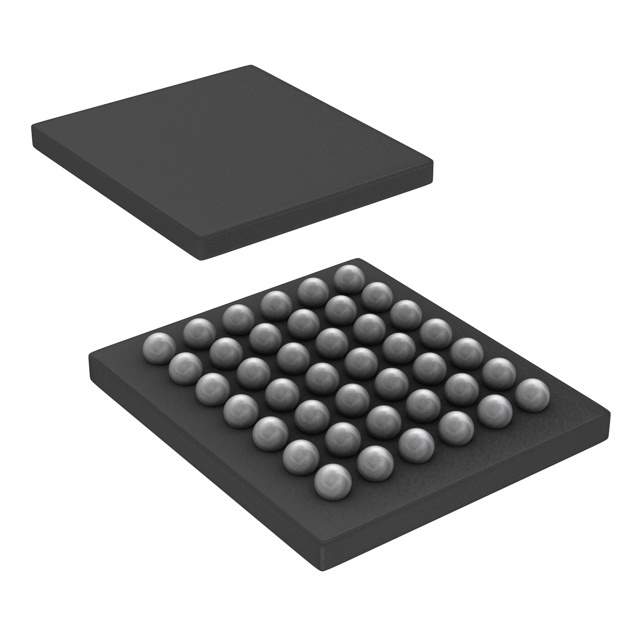

Manufacturer Package 42-DSBGA
Package 42-UFBGA, DSBGA
Win Source Part Number 1264034-TAS2555YZT
Manufacturer Homepage www.ti.com
Popularity Medium
Supply and Demand Status Limited
Family Name TAS2555
Introduction Date August 19, 2015
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date 2028
Win Source Part Number SSM2537ACBZ-R7;   SSM2537ACBZ-RL; NJU#8719V-TE2;

Description

The TAS2555YZT is a high-performance, feature-rich audio solution from the renowned semiconductor manufacturer Texas Instruments (TI). This advanced audio component is designed to deliver premium sound quality in a compact and efficient package, making it an ideal choice for a wide range of applications, including smartphones, tablets, and portable multimedia devices.

Key Features

  • High-Quality Audio Performance: The TAS2555YZT boasts a 5.7W peak power into a 4Ω load and 3.8W continuously, ensuring loud and clear audio output. It also features a high signal-to-noise ratio (SNR) and total harmonic distortion plus noise (THD+N) that contribute to its superior sound quality.
  • Smart Amplifier Technology: Incorporating TI's Smart Amp technology, this device provides real-time speaker monitoring and protection, thereby enhancing the audio performance while extending the speaker's life.
  • Integrated Digital Signal Processor (DSP): The built-in DSP allows for advanced audio processing and customization, enabling manufacturers to fine-tune audio performance to match specific speaker characteristics or user preferences.
  • Flexible Audio Input: The TAS2555YZT supports multiple audio input formats, including I2S, TDM, and PDM interfaces, offering versatility in system design and integration.
  • Compact Design: With its small footprint in a 2.5mm x 2.5mm 36-ball YZT package, the TAS2555YZT is optimized for space-constrained applications without sacrificing performance.

Applications

The TAS2555YZT is designed to meet the needs of various audio applications, thanks to its robust feature set and adaptability. It is particularly well-suited for:

  • Portable audio devices
  • Smartphones and tablets
  • Wireless speakers
  • Bluetooth headphones and earbuds
  • Other consumer electronics requiring high-quality audio amplification

Conclusion

In summary, the TAS2555YZT from Texas Instruments represents a cutting-edge solution for audio amplification, bringing together power, performance, and protection in a small package. Its integration of Smart Amp technology and a powerful DSP allows for an unparalleled audio experience, making it a top choice for manufacturers and designers looking to elevate the audio capabilities of their products.
