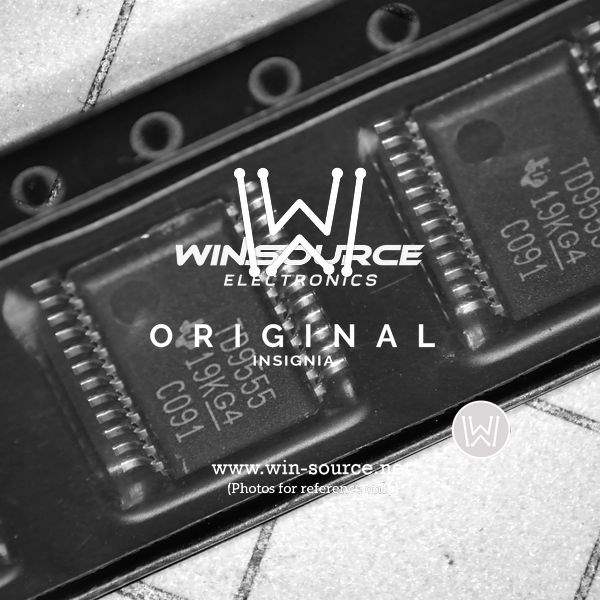

Product Overview: TCA9555RGER by Texas Instruments

The TCA9555RGER is a sophisticated integrated circuit manufactured by Texas Instruments, renowned for its expertise in creating high-performance semiconductor technologies. This particular device is a Remote 16-Bit I/O Expander for the I²C bus, designed to provide a simple solution for expanding I/O capabilities when interfacing with a microcontroller or processor.

Key Features

• I²C Interface: The TCA9555RGER operates via an I²C bus, ensuring easy integration with existing microcontroller-based systems. It supports both 100kHz (Standard-mode) and 400kHz (Fast-mode) I²C speeds.
• 16-Bit I/O Expansion: It offers 16 additional input/output ports, which can be configured as inputs or outputs, providing significant expansion for systems with limited I/O pins.
• Interrupt Output: An interrupt output is available to alert the host microcontroller of changes in input status, allowing for efficient event-driven programming.
• Low Standby Current: With its low standby current, the TCA9555RGER is suitable for power-sensitive applications, contributing to overall power efficiency.
• Wide Operating Voltage: The device supports an operating voltage range from 2.3V to 5.5V, accommodating various logic levels and ensuring compatibility with a broad range of microcontrollers and processors.
• Robust Package: The TCA9555RGER comes in a VQFN-24 package, which is not only space-efficient but also offers good thermal performance.

Applications

The TCA9555RGER is ideally suited for a multitude of applications where additional I/Os are needed. Common use cases include:

• Servers
• Personal electronics
• Industrial control systems
• Medical equipment
• Automotive infotainment systems

With its ease of use, flexibility, and Texas Instruments' reliability, the TCA9555RGER is a go-to choice for designers looking to enhance their system's I/O capabilities without significant redesign or increased complexity.
