Product Overview: Texas Instruments TCA9617ADGKR

The Texas Instruments TCA9617ADGKR is a robust I²C bus buffer that extends the capabilities of the I²C protocol by enabling system designers to overcome common challenges such as voltage-level shifting and long-distance communication. This device is particularly useful in applications where multiple devices with different voltage requirements need to communicate over the I²C bus, or where the bus needs to be extended across longer distances than typically supported.

Key Features

• Dual Bidirectional Buffer: The TCA9617ADGKR includes two bidirectional channels that allow for simultaneous data flow in both directions, ensuring efficient communication between I²C devices.
• Voltage Level Translation: With a wide range of voltage translation between 0.8V and 5.5V on the A-side and 2.7V to 5.5V on the B-side, this device allows for seamless communication between devices operating at different voltage levels.
• Enhanced Signal Integrity: The buffer actively drives the SCL and SDA lines and includes rise-time accelerators to enhance signal integrity, particularly in long bus lines or in the presence of capacitive loads.
• Hot-Swap Capability: The TCA9617ADGKR supports hot-swapping, making it possible to connect devices to the I²C bus without needing to power down the system.
• Fail-Safe Operation: It features a fail-safe mechanism that prevents the bus from being stuck in a low state, facilitating a more reliable bus operation.
• Low Standby Current: Designed for energy-efficient operation, the device has a low standby current, making it suitable for battery-powered applications.

Applications

The versatility of the TCA9617ADGKR makes it an ideal choice for a wide range of applications, including:

• Consumer Electronics
• Mobile Phones and Tablets
• Computing and Peripherals
• Industrial Control Systems
• Automotive Infotainment Systems

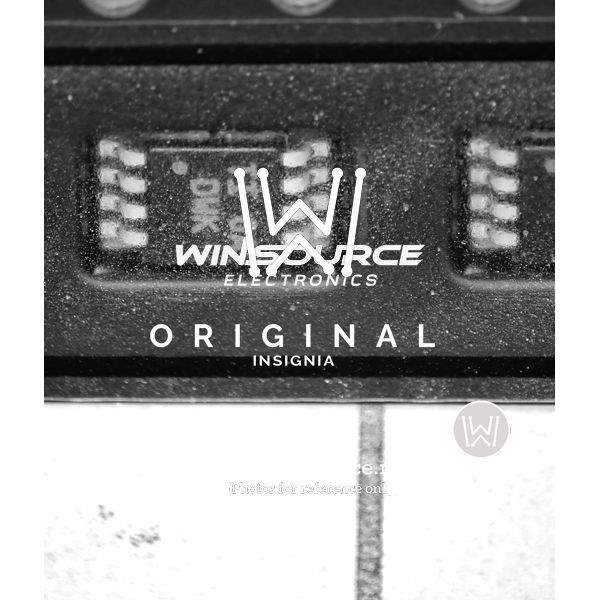

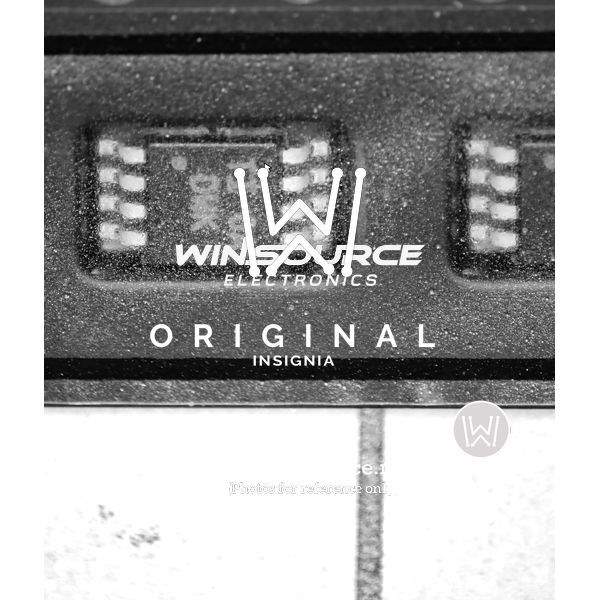

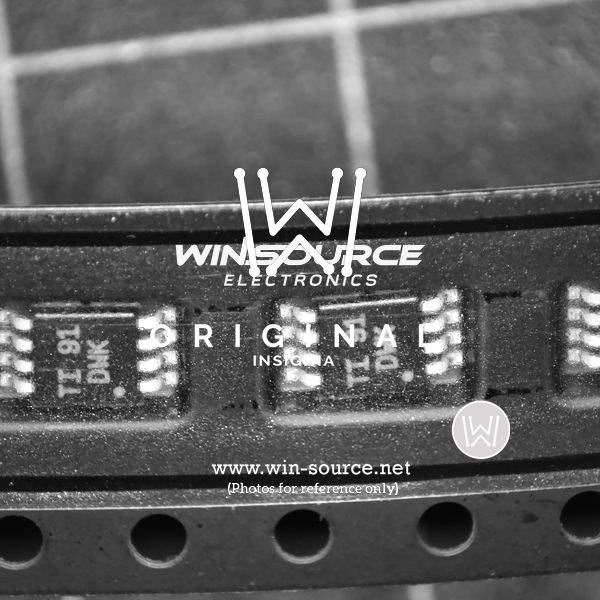

With its compact VSSOP (DGK) 8-pin package, the TCA9617ADGKR is designed to occupy minimal board space while providing maximum functionality. It is a reliable solution for designers looking to enhance I²C communication in their next-generation electronic systems.

For detailed information, datasheets, and technical support, visit the Texas Instruments website to ensure your design incorporates the TCA9617ADGKR with the latest specifications and recommendations.
