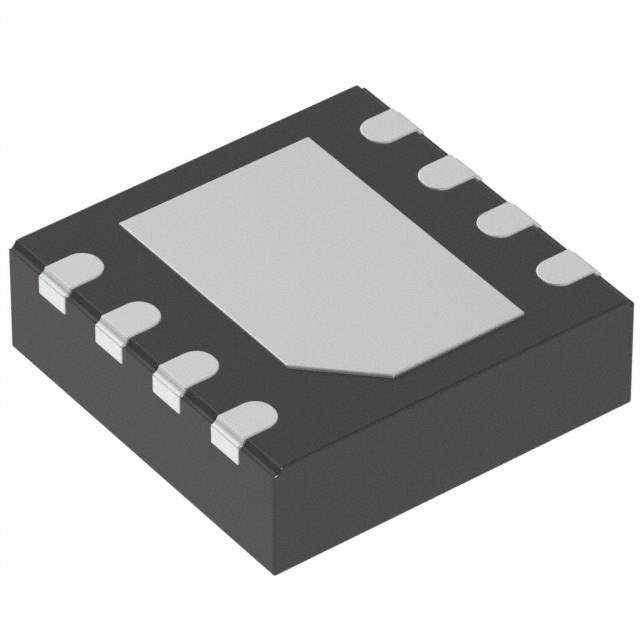

Product Overview: TCAN1042HGVDRBRQ1 from Texas Instruments

The TCAN1042HGVDRBRQ1 is a high-performance, automotive-grade CAN transceiver from Texas Instruments (TI) designed to meet the rigorous demands of the automotive industry. This device provides an interface between a Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus, and is suitable for applications in automotive body control modules, powertrain, and advanced driver assistance systems (ADAS).

Key Features

• Robustness: The TCAN1042HGVDRBRQ1 is designed to withstand the harsh conditions of automotive environments. It features protection against voltage transients, electrostatic discharge (ESD), and has an extended common-mode range (-12V to +12V), making it exceptionally robust for 12V and 24V systems.
• High-Speed CAN: This transceiver is capable of operating at speeds of up to 1 Mbps, making it suitable for high-speed CAN applications. It is also compliant with the ISO 11898-2:2016 standard.
• Low Power Mode: With a low-power standby mode, the TCAN1042HGVDRBRQ1 helps reduce power consumption when the network is idle, contributing to energy-saving strategies in automotive designs.
• Bus Fault Protection: The device offers bus fault protection of ±58V, ensuring reliability and continuous operation even under fault conditions.
• Thermal Protection: Integrated thermal shutdown protection prevents the device from overheating, ensuring long-term reliability.

Applications

The TCAN1042HGVDRBRQ1 is ideal for a wide range of automotive applications, including but not limited to:

• Engine Control Units (ECUs)
• Transmission Control Modules
• Anti-lock Braking Systems (ABS)
• Electric Power Steering (EPS)
• Body Control Modules (BCM)
• Infotainment Systems

Quality and Reliability

The TCAN1042HGVDRBRQ1 is AEC-Q100 qualified, ensuring that it meets the automotive industry's standard for reliability. It is also manufactured in TI's state-of-the-art facilities, which are known for producing high-quality semiconductor products.

With its combination of high-speed data transmission, robust protection features, and low power consumption, the TCAN1042HGVDRBRQ1 is a superior choice for developers looking to integrate a reliable CAN transceiver into their automotive applications.
