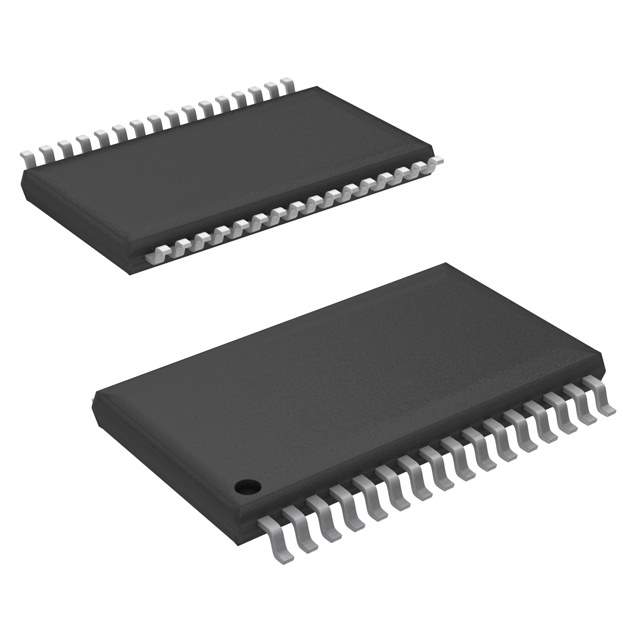

THS1206IDA

Part No THS1206IDA
Manufacturer Texas Instruments
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description 12-BIT 6 MSPS, SIMULTANEOUS SAMPLING ANALOG-TO-DIGITAL CONVERTERS | IC ADC 12BIT PIPELINED 32TSSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube
Resolution 12
Sampling Rate (Per Second) 6M
Number of Inputs 2, 4
Input Type Differential, Single Ended
Data Interface Parallel
Configuration S/H-MUX-ADC
Number of A/D Converters 1
Architecture Pipelined
Reference Type External, Internal
Supply Voltage , Analog 5V
Supply Voltage , Digital 3V ~ 5.25V
Features Simultaneous Sampling
Temperature Range - Operating -40°C ~ 85°C
Manufacturer Package 32-TSSOP (0.240", 6.10mm Width)
Supplier Device Package 32-TSSOP
Mounting Style SMD
Family Part Number THS1206
Manufacturer Pack Quantity 46
MSL Level 2 (1 Year)
Win Source Part Number 1266995-THS1206IDA
Manufacturer Homepage www.ti.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian THS1206IDA CAD Model

Description

The THS1206IDA is a high-performance, 12-bit analog-to-digital converter (ADC) developed by Texas Instruments. This precision ADC is designed to meet the demanding needs of a wide range of applications, including industrial control systems, medical equipment, scientific instrumentation, and communication devices.

Featuring a fully differential input design, the THS1206IDA provides excellent noise rejection and a high signal-to-noise ratio (SNR), ensuring accurate and reliable data conversion in electrically noisy environments. The device operates with a sampling rate of up to 6 MSPS (mega samples per second), enabling it to handle fast signal variations and support high-speed signal processing requirements.

The THS1206IDA comes in a compact SSOP (Shrink Small Outline Package) form factor, making it suitable for space-constrained applications. It also offers low power consumption, which is critical for portable and battery-powered devices, helping to extend operational life and reduce the overall energy footprint of the system.

With an integrated sample-and-hold circuit, the ADC ensures that the input signal is captured accurately at the moment of conversion, minimizing timing errors and distortion. The device also features an internal reference, although it provides the flexibility to use an external reference if higher precision is required.

The THS1206IDA supports a wide input voltage range and includes a programmable gain amplifier (PGA), allowing users to adjust the gain to suit the amplitude of the input signal. This flexibility enhances the dynamic range of the ADC and makes it adaptable to signals of various levels without the need for external signal conditioning.

For digital interface, the THS1206IDA offers a parallel interface that is compatible with most DSPs and microcontrollers, facilitating easy integration into existing systems. The device also includes an out-of-range indicator flag, which alerts the system when the input signal exceeds the predefined threshold, thus contributing to system reliability and safety.

In summary, the THS1206IDA from Texas Instruments is a versatile and efficient solution for high-speed and high-precision analog-to-digital conversion, making it a valuable component in any advanced electronic system.
