Introducing the TIL125 Optocoupler from Texas Instruments

The TIL125 is a state-of-the-art optocoupler device designed and manufactured by Texas Instruments, one of the leading companies in the semiconductor industry. This optoelectronic device is engineered to provide high-voltage insulation and signal transfer between two isolated circuits by using light to transmit electrical signals.

The TIL125 is comprised of a gallium arsenide infrared LED and a silicon NPN phototransistor. When a signal is applied to the input side of the optocoupler, the LED emits infrared light, which is then detected by the phototransistor on the output side. This allows for electrical isolation between the input and output, with the TIL125 boasting an impressive isolation voltage typically rated at 5300V peak.

The device is widely used in a variety of applications where electrical isolation is crucial, such as in power supply management, digital communication systems, and microprocessor inputs. Its ability to protect sensitive electronic components from high voltages makes it an invaluable component in industrial controls, medical equipment, and other safety-critical applications.

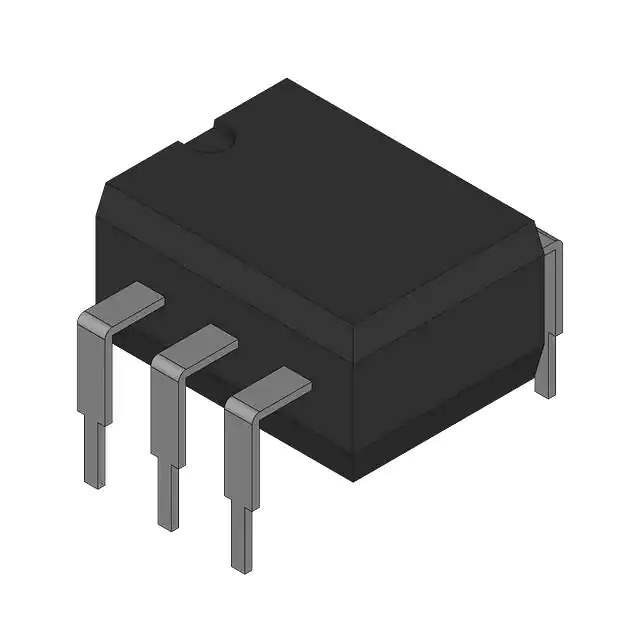

The TIL125 comes in a dual-in-line package, providing ease of integration into existing circuits without the need for complex mounting procedures. Its compact design does not compromise on performance, offering a current transfer ratio (CTR) that ensures reliable data transmission even in environments with high electrical noise.

Key features of the TIL125 include:

• High isolation voltage (5300V peak)
• Low input current requirements
• High current transfer ratio
• Wide operating temperature range
• UL and VDE certifications for safety standards compliance

Texas Instruments' commitment to quality and performance is evident in the TIL125 optocoupler. With its robust design and reliable functionality, the TIL125 is an excellent choice for engineers and designers looking to incorporate electrical isolation in their high-performance systems.
