The TL783CKTER from Texas Instruments is a versatile and robust adjustable voltage regulator designed to cater to a wide range of applications that require a high input voltage and an adjustable output voltage. This component is an integral part of the power management solutions provided by Texas Instruments, a leader in semiconductor technology.

Key Features

• Adjustable Output: The TL783CKTER offers an adjustable output voltage range from 1.25 V to 125 V, which allows for flexibility in various applications.
• High Input Voltage: With an impressive input voltage capability of up to 136 V, this voltage regulator can handle high-voltage requirements with ease.
• Output Current: It is capable of delivering up to 700 mA of output current, suitable for a range of moderate to high-power needs.
• Thermal Protection: The device includes an in-built thermal shutdown feature to protect against overheating, ensuring reliability and longevity.
• Low Ground Pin Current: Its low ground pin current at full load minimizes the drop in output voltage variations with load, providing a stable output.

Applications

The TL783CKTER is ideal for a variety of applications, including:

• High-voltage power supplies
• Regulated power supplies
• Constant current regulators
• Adjustable power supplies

Package and Availability

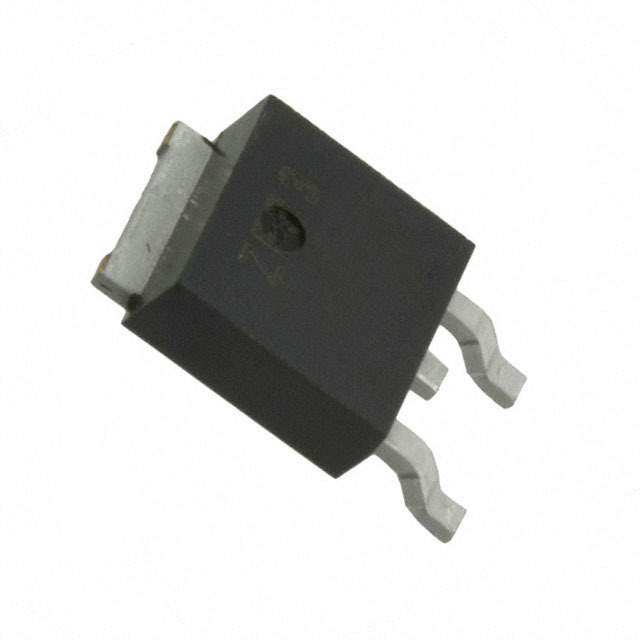

This regulator is available in a TO-263 package, known for its compact size and excellent power dissipation characteristics. The package is suitable for surface mounting, which makes it a good fit for modern PCB designs. The TL783CKTER is available for purchase through various distributors and directly from Texas Instruments.

With its combination of high-voltage input, adjustable output, and robust protection features, the TL783CKTER is a reliable choice for engineers and designers looking to create efficient and durable power management systems.
