The Texas Instruments TLC59401PWPR is a highly efficient, 16-channel LED driver designed to cater to a wide array of lighting applications. This integrated circuit is part of TI's extensive portfolio of LED drivers, offering a solution that combines precision with a versatile feature set to enhance the performance and reliability of LED systems.

The TLC59401PWPR is capable of providing constant-current sink to drive LEDs with high accuracy. Each of the 16 channels can be individually controlled via a simple serial interface, which allows for the adjustment of LED brightness through grayscale PWM (Pulse Width Modulation) control. The device supports a 12-bit (4096 steps) grayscale PWM for each channel, enabling fine dimming resolution for applications that require precise light intensity control.

With a wide operating voltage range, the TLC59401PWPR can support various LED configurations and can be easily integrated into different system designs. The device's thermal shutdown and LED open/short detection features ensure that your LED array is protected from potential damage due to overheating or wiring faults, enhancing the longevity and safety of your lighting solution.

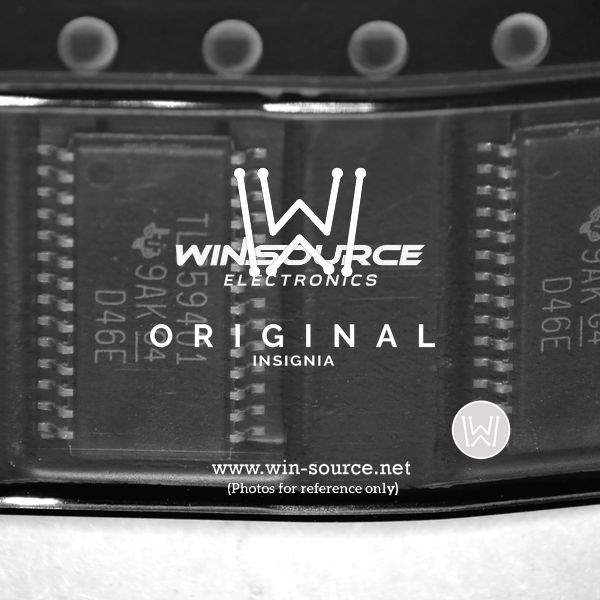

The TLC59401PWPR comes in a TSSOP (Thin Shrink Small Outline Package) form factor with a PowerPAD™ for improved thermal performance, ensuring that the device operates efficiently even under high current conditions. This packaging makes it suitable for space-constrained applications while providing robust heat dissipation capabilities.

Key features of the TLC59401PWPR include:

• 16 Constant-Current Output Channels
• 12-Bit (4096 Steps) Grayscale PWM Brightness Control per Channel
• Serial Interface for Individual Channel Control
• Wide Voltage Range for Versatile LED Configurations
• Thermal Shutdown and Open/Short LED Detection for Protection
• Efficient PowerPAD™ TSSOP Packaging

Whether you're developing commercial lighting systems, backlighting for displays, or sophisticated architectural lighting, the Texas Instruments TLC59401PWPR offers the performance, precision, and reliability to meet the stringent requirements of modern LED applications.
