The Texas Instruments TLC7701IDR is a highly reliable voltage supervisor device designed to monitor the supply voltage of microprocessors (μP), microcontrollers (MCU), and other voltage-sensitive systems. This precision instrument ensures that the system voltage remains within acceptable thresholds, safeguarding the system from unexpected resets, data loss, or damage due to voltage fluctuations.

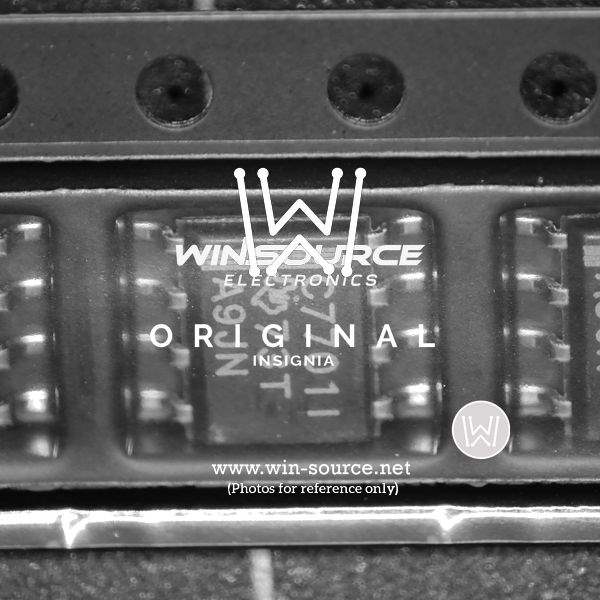

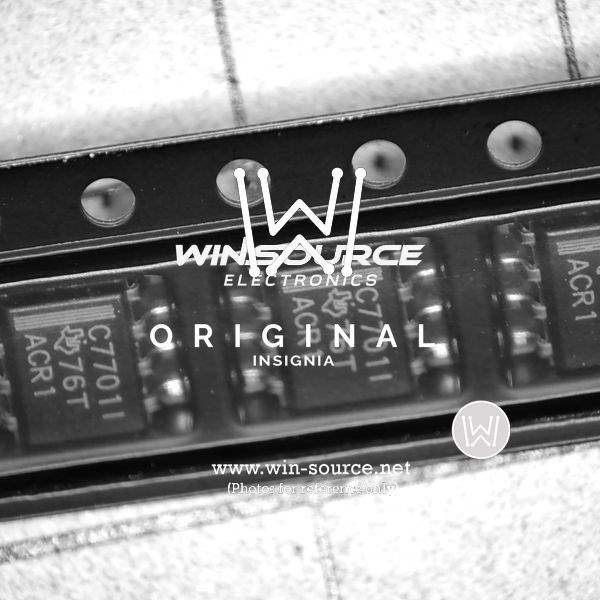

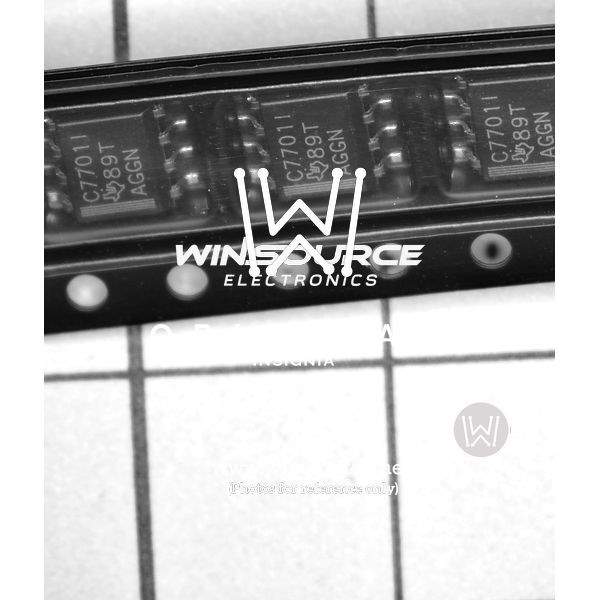

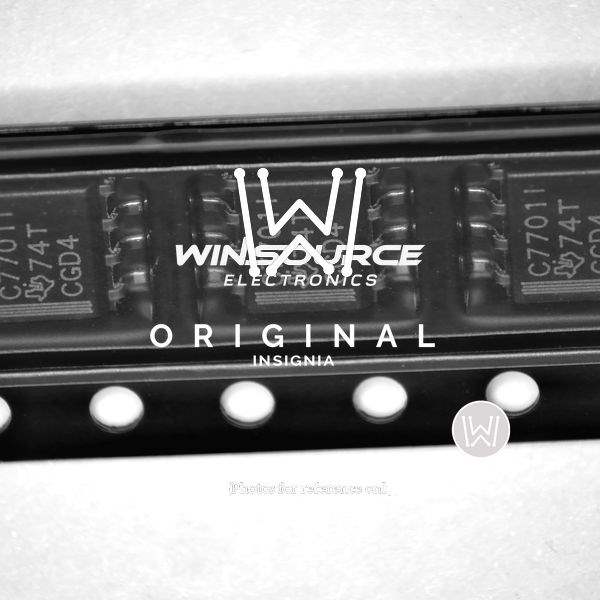

Encased in a small, 8-pin SOIC package, the TLC7701IDR is an integral component for systems that require consistent monitoring and management of power supply levels. It is particularly beneficial for battery-powered electronics where power levels can vary and need to be carefully managed to maintain system stability and performance.

With a programmable voltage detection range, the TLC7701IDR can be tailored to the specific needs of the application it is used in. This flexibility allows designers to set precise voltage thresholds that, when crossed, trigger the device to send a reset signal to the processor. This reset signal ensures that the system can recover from brown-out conditions without manual intervention.

The TLC7701IDR boasts a low supply current, which is critical for power-sensitive applications. Its low operational quiescent current helps to extend battery life and reduce power consumption, making it an eco-friendly choice for portable and wearable technology. Furthermore, it provides a manual reset function, which allows for system resets to be initiated by external events or user input.

The device also features a built-in delay timer that prevents false triggering by providing a programmable time delay on the output signal. This delay ensures that only genuine voltage dips cause a system reset, thus enhancing the robustness of the application it serves.

Overall, the Texas Instruments TLC7701IDR is a smart choice for any designer looking to incorporate a reliable voltage monitoring solution into their system. Its precise voltage detection capabilities, low power consumption, and programmable features make it a versatile and essential component in maintaining system integrity.
