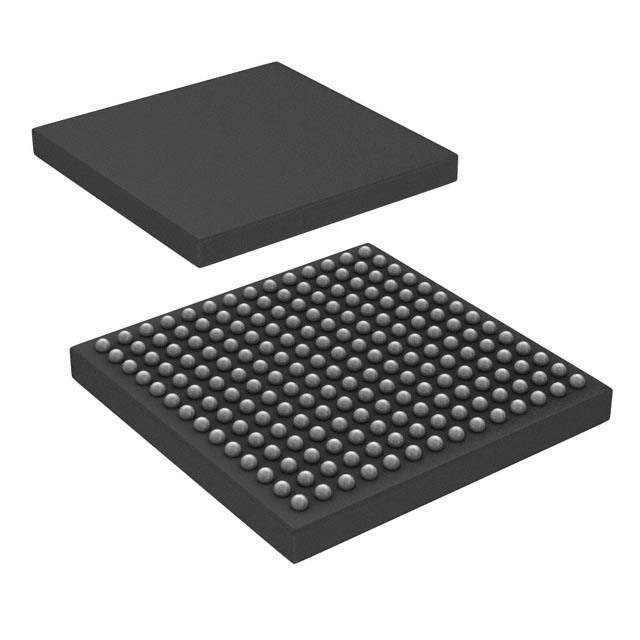

The TLK2226ZEA is a high-speed, multi-gigabit transceiver from Texas Instruments, designed to meet the demanding requirements of today's data communication networks. This versatile chip is capable of transmitting and receiving data at rates of up to 3.125 Gbps per channel, making it an ideal solution for applications that require rapid data transfer such as high-speed backplanes, gigabit ethernet, and fiber channel systems.

Key Features:

• High Data Rate: Each of the TLK2226ZEA's six bidirectional channels supports data rates up to 3.125 Gbps, providing a total aggregate bandwidth of 18.75 Gbps.
• Flexibility: The device can be configured for various data widths and speed grades, enabling it to be used in a wide range of applications.
• Low Power Consumption: With its advanced design, the TLK2226ZEA operates with low power dissipation, making it suitable for power-sensitive designs.
• Signal Integrity: Integrated equalization and pre-emphasis circuits help maintain signal integrity over long cable lengths and backplanes.
• Hot-Plug Capability: The transceiver supports hot-plugging, allowing for the addition or removal of components without the need to power down the system.

Applications:

The TLK2226ZEA is used in a variety of high-speed data communication applications, including:

• Data Center Networking
• High-Speed Backplanes
• Gigabit Ethernet Switches and Routers
• Fiber Channel Systems
• Telecommunications Equipment

Technical Specifications:

For engineers and system designers looking for a robust, high-speed communication solution, the TLK2226ZEA offers the perfect blend of performance, flexibility, and reliability.
