Overview of Product TLV2172IDR from Texas Instruments

The TLV2172IDR is a high-performance, precision operational amplifier from Texas Instruments, designed to meet a wide range of applications, including industrial, automotive, and consumer electronics. This op-amp is part of the TLV217x family that features low offset, low noise, and low power consumption, making it an excellent choice for applications requiring high accuracy and efficiency.

With its rail-to-rail output swing, the TLV2172IDR provides a dynamic range that is especially beneficial in single-supply operations, ensuring maximum signal amplitude. This is particularly valuable in battery-powered devices where every volt matters. Its input common-mode voltage range includes ground, which is ideal for single-supply applications and simplifies circuit design.

The TLV2172IDR operates over a supply range of 4.5V to 36V (or ±2.25V to ±18V for dual supplies), allowing it to be used in various environments and systems without the need for level shifting. This flexibility makes it a versatile choice for designers.

The device features a low input offset voltage of 500 µV (max) and low noise density of 11 nV/√Hz at 1 kHz, which ensures high precision in measurement and control systems. Additionally, with a quiescent current of just 850 µA per channel, the TLV2172IDR is an energy-efficient option for power-sensitive applications.

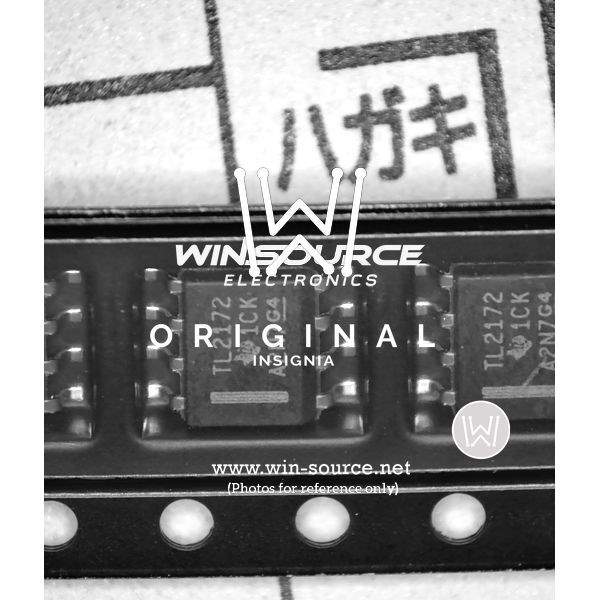

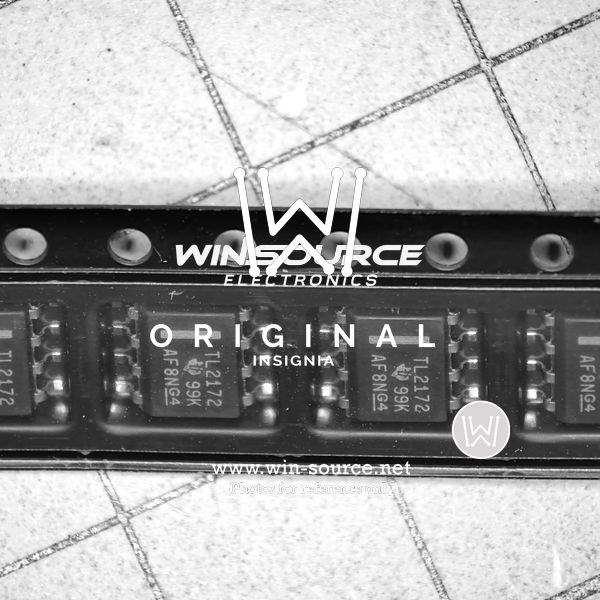

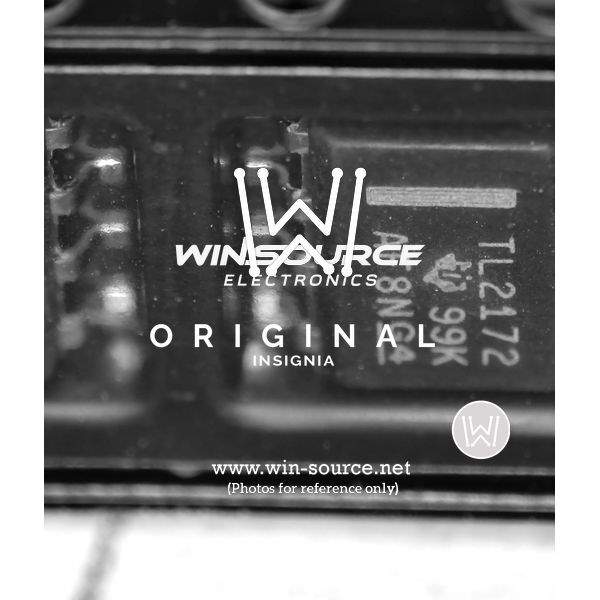

The TLV2172IDR comes in an 8-pin SOIC package, which is a space-saving form factor suitable for compact PCB layouts. Its operational temperature range of -40°C to +125°C makes it reliable in extreme conditions, and the device is RoHS compliant, adhering to environmental standards.

In summary, the TLV2172IDR from Texas Instruments is a robust, precise, and energy-efficient operational amplifier that is well-suited for a multitude of applications where accuracy and power efficiency are paramount. Its comprehensive feature set ensures that it can be integrated into a broad array of electronic systems, delivering consistent performance and reliability.
